Equipment ↠ Caterpillar ↠ Compact Track Loaders ↠ THIS Caterpillar 239D

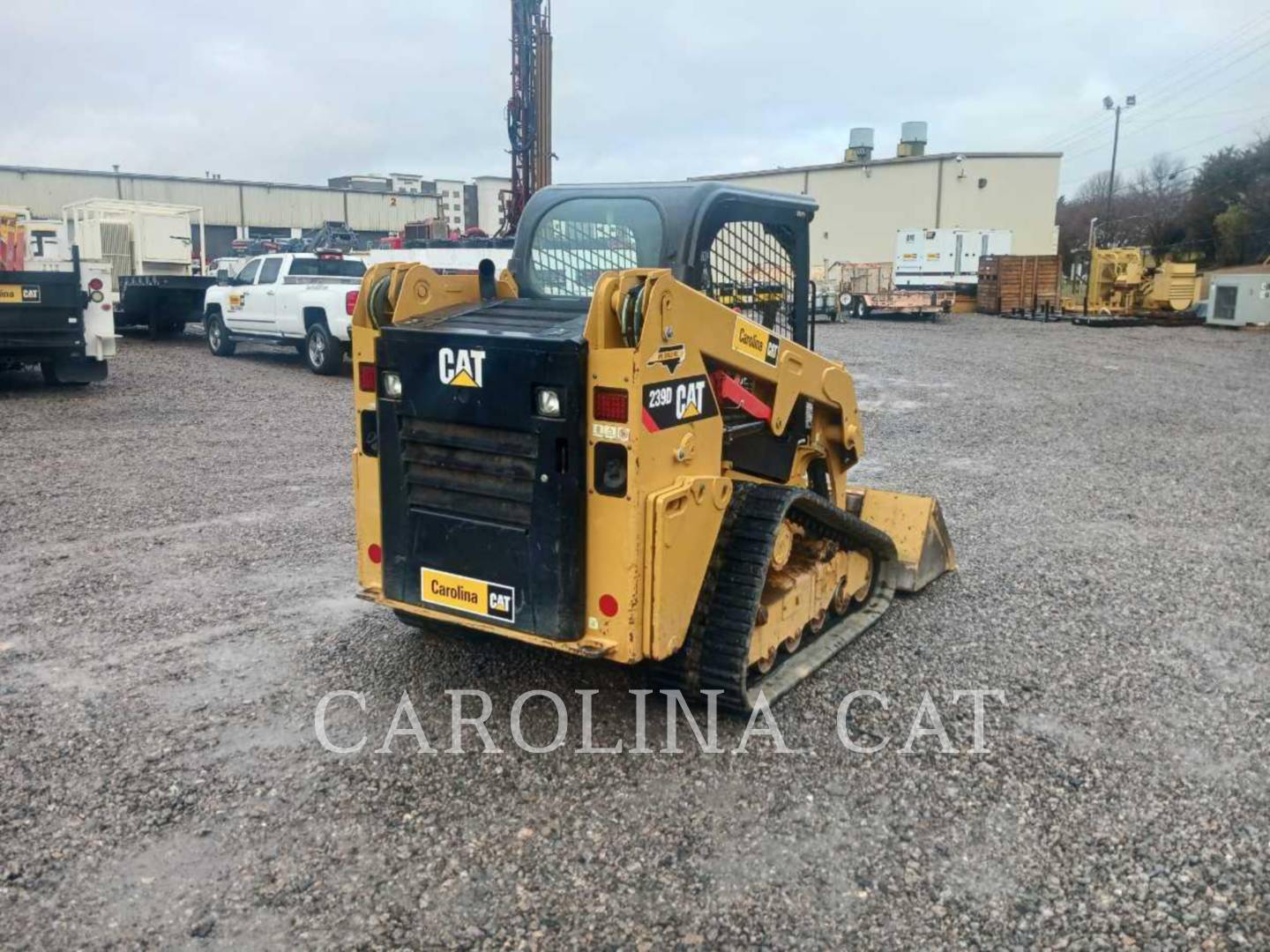

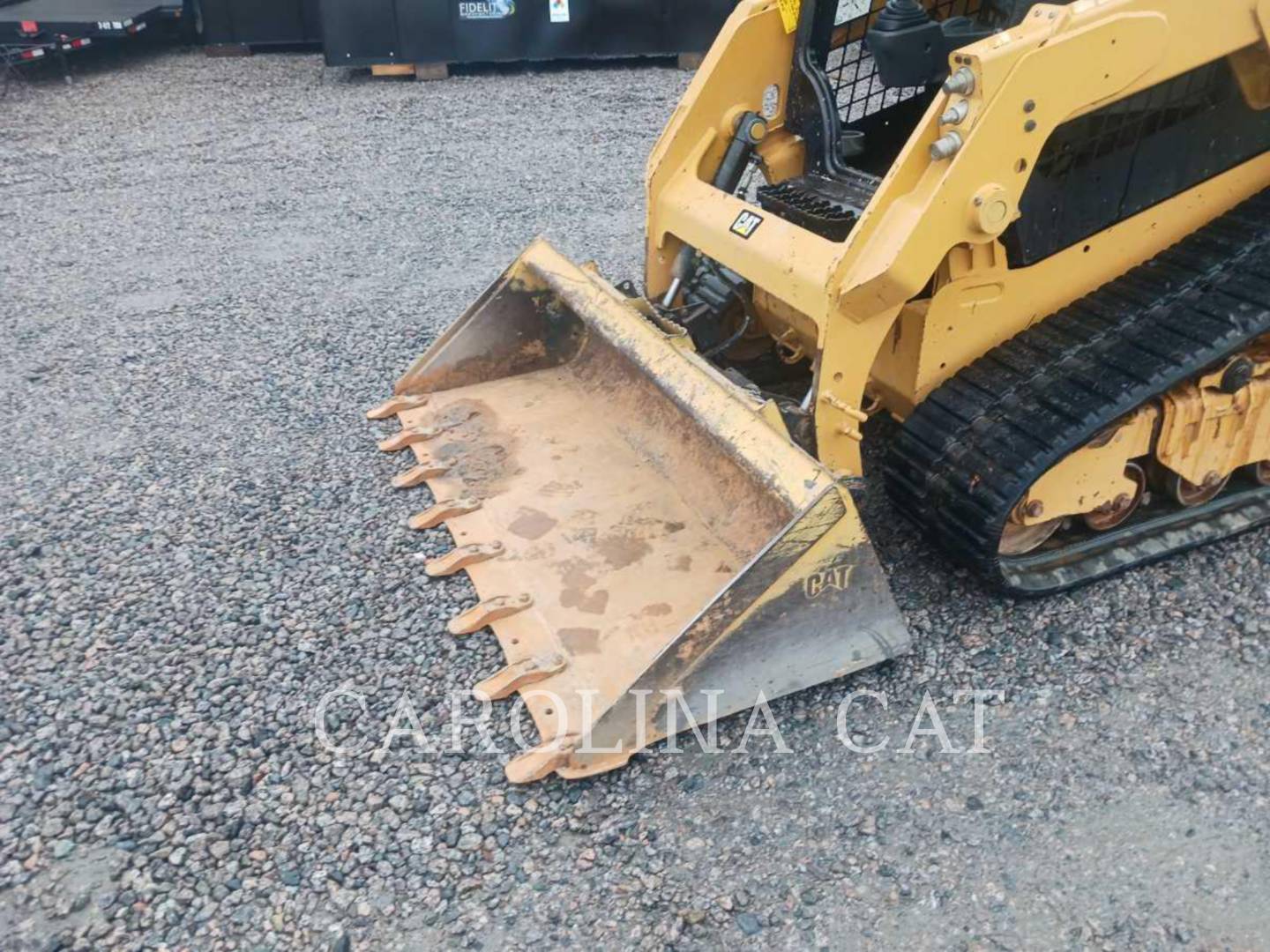

Caterpillar 239D For Sale in Charlotte, NC

Name: Caterpillar 239D
Brand: Caterpillar
Price: 26000 USD
Availability: InStock

❮

❯

For Sale: $26,000.00 USD

Apply for Financing

Carolina CAT

Carolina CAT Dealer Info

Carolina CAT Website

Click here to email Carolina CAT.

Contact: Gary Jarvis

Click for Phone Number

Machine Info:

Hours:	1914
Serial Number:	BL901085
Machine Location:	CHARLOTTE, NC
More Information:	https://catused.com/cu/10097466

Description:

BATTERY, 850 CCA, HEAVY DUTY, CONTROL, ISO, PROP, CONVERSION ARRANGEMENT, DISPLAY, BASIC, ANTI-THEFT, ENGINE SN#C8203794, FAN, COOLING, DEMAND, HOT LIST, INSTRUCTIONS, ANSI, USA, LANE 2 ORDER, LIGHTS, HALOGEN, Online Owner's Manual , PACK, DOMESTIC TRUCK, PACKAGE, PERFORMANCE, (H2), QUICK COUPLER, MANUAL, RIDE CONTROL, NONE, ROPS, OPEN (C1), RUBBER BELT, 1 SPD, D/S IDLER, SEAT BELT, 2", SEAT, SUSPENSION, VINYL, SERIALIZED TECHNICAL MEDIA KIT, TRACK,RUBBER,400MM(15.7 IN)BAR

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Cab
FOPS	ISO 3449:2005 Level I
FOPS Level II	ISO 3449:2005 Level II
ROPS	ISO 3471:2008
Dimensions
Bucket Pin Height - Carry Position	8.6 in ( 22 cm )
Bucket Pin Height - Maximum Lift	9.3 ft ( 3 m )
Clearance at Maximum Lift and Dump	81.0 in ( 206 cm )
Departure Angle	34.5 deg
Ground Clearance	0.7 ft ( 0 m )
Height - Top of Cab	6.7 ft ( 2 m )
Length - Track on Ground	54.5 in ( 138 cm )
Length - With Bucket on Ground	127.3 in ( 323 cm )
Length - Without Bucket	99.3 in ( 252 cm )
Maximum Dump Angle	50.3 deg
Maximum Overall Height	143.5 in ( 364 cm )
Maximum Reach - With Arms Parallel to Ground	53.4 in ( 136 cm )
Overall Length - Track	71.2 in ( 181 cm )
Rack Back Angle - Maximum Height	85.5 deg
Reach - Maximum Lift/Dump	22.2 in ( 56 cm )
Turning Radius from Center - Bucket	81.5 in ( 207 cm )
Turning Radius from Center - Coupler	45.6 in ( 116 cm )
Turning Radius from Center - Machine Rear	57.4 in ( 146 cm )
Vehicle Width (320 mm/12.6 in tracks)	66.0 in ( 168 cm )
Vehicle Width (400 mm/15.7 in tracks)	69.1 in ( 176 cm )
Engine
Bore	3.3 in ( 8 cm )
Displacement	134.3 cu in ( 2,201 cu cm )
Engine Model	Cat C2.2 CRDI
Gross Power	60.0 hp ( 45 kw )
Gross Power - SAE J1995	67.1 hp ( 50 kw )
Net Power	65.8 hp ( 49 kw )
Net Power - ISO 9249	66.5 hp ( 50 kw )
Net Power - SAE 1349	65.8 hp ( 49 kw )
Peak Torque - 1,500 rpm - SAE J1995	153.0 ft ( 47 m )
Stroke	3.9 in ( 10 cm )
General Specifications
category	COMPACT TRACK LOADERS
ENGINE POWER HP (KW)	60 (45)
MODEL	239D
OPERATING LOAD LBS. (KG)	2,050 (930)
OPERATING WIDTH IN. (CM)	66 (168)
RATED OPERATING CAPACITY LBS. (KG) (35%)	1,435 (651)
RATED OPERATING CAPACITY LBS. (KG) (50%)	1,435 (651)
Hydraulic System
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	50.9 hp ( 38 kw )
Hydraulic Flow - High Flow - Loader Hydraulic Flow	26.0 gpm ( 98 lpm )
Hydraulic Flow - High Flow - Loader Hydraulic Pressure	3,336.0 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	35.5 hp ( 26 kw )
Hydraulic Flow - Standard - Loader Hydraulic Flow	18.0 gpm ( 68 lpm )
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3,336.0 psi
Loader
Operating Load Rating	2,050.0 lbs ( 930 kg )
Operating Width	66.0 in ( 168 cm )
Noise Level
Inside Cab*	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	103 dB(A)
Operating Specifications
Breakout Force - Tilt Cylinder	3,969.0 lbs ( 1,800 kg )
Ground Contact Area - With 320 mm/12.6 in Track	1,373.0 cu in ( 22,499 cu cm )
Ground Contact Area - With 400 mm/15.7 in Track	1,716.0 cu in ( 28,120 cu cm )
Ground Pressure - With 320 mm/12.6 in Track	5.3 psi
Ground Pressure - With 400 mm/15.7 in Track	4.4 psi
Rated Operating Capacities - 35% Tipping Load	1,435.0 lbs ( 651 kg )
Rated Operating Capacities - 50% Tipping Load	2,050.0 lbs ( 930 kg )
Rated Operating Capacity with Optional Counterweight	2,250.0 lbs ( 1,021 kg )
Tipping Load	4,100.0 lbs ( 1,860 kg )
Service Refill Capacities
Cooling System	3.2 gal ( 12 l )
Engine Crankcase	2.6 gal ( 10 l )
Fuel Tank	15.1 gal ( 57 l )
Hydraulic System	11.9 gal ( 45 l )
Hydraulic Tank	9.0 gal ( 34 l )
