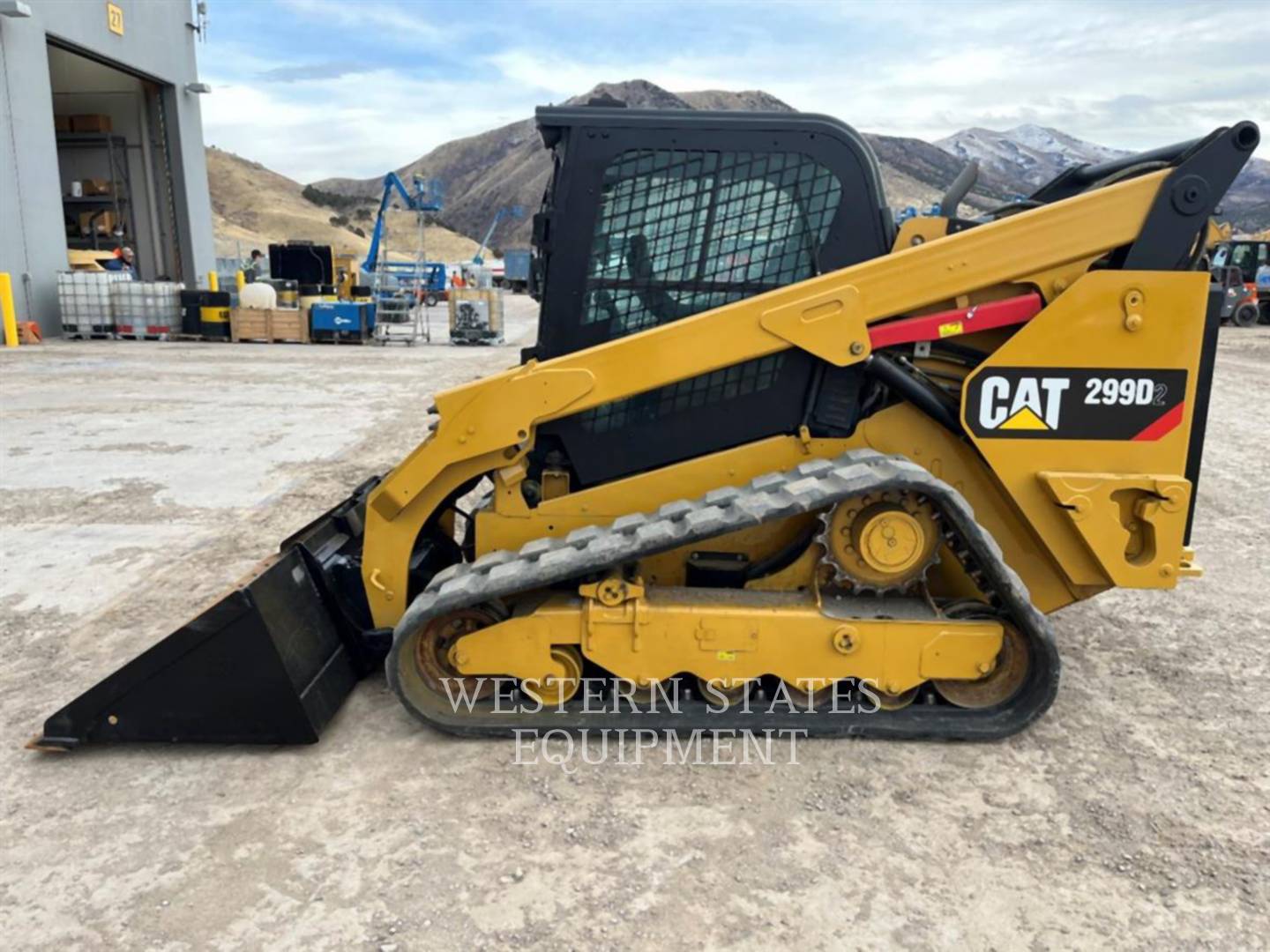

Caterpillar 299D2 For Sale in Meridian, ID

Name: Caterpillar 299D2
Brand: Caterpillar
Price: 53500 USD
Availability: InStock

❮

❯

For Sale: $53,500.00 USD

Apply for Financing

Western States Equipment

Western States Equipment Dealer Info

Western States Equipment Website

Click here to email Western States Equipment.

Contact: Andrew Sailors

Click for Phone Number

Machine Info:

Hours:	4483
Serial Number:	FD202298
Machine Location:	MERIDIAN, ID
More Information:	https://catused.com/cu/10172819

Description:

299D2, 299D2 COMPACT TRACK LOADER, BATTERY, XTRA HVY DUTY, DISC, CERTIFICATION ARR, (US/CANADA), CONTROL, ISO, PROP, WT, CONVERSION ARRANGEMENT, COUNTERWEIGHT,MACHINE,EXTERNAL, DISPLAY, ADVANCED, LCD, CAMERA, DOOR, CAB, POLYCARBONATE, FAN, COOLING, DEMAND, FILM, RIDE CONTROL, ANSI, FILM, SELF LEVEL, ANSI, HEATER, ENGINE COOLANT, 120V, INSTRUCTIONS, ANSI, USA, LANE 2 ORDER, LIGHTS, HALOGEN, OIL, HYDRAULIC, COLD OPERATION, Online Owner's Manual , PACK, DOMESTIC TRUCK, PACKAGE, PERFORMANCE, (H3), PRODUCT LINK, CELLULAR PL641, QUICK COUPLER, HYDRAULIC, RADIO, AM/FM, BLUETOOTH, RETURN TO DIG/WRKTL POSITIONER, Ride Control, ROPS, ENCLOSED WITH A/C (C3), RUBBER BELT, 2 SPD, TF IDLERS, SEAT BELT, 3", SEAT,AIR SUSPENSION,CLOTH,HEAT, SERIALIZED TECHNICAL MEDIA KIT, SHIPPING/STORAGE PROTECTION, TRACK,RUBBER,450MM(17.7IN)BLCK

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Cab
FOPS	ISO 3449:2005 Level I
FOPS Level II	ISO 3449:2005 Level II
ROPS	ISO 3471:2008
Dimensions
Bucket Pin Height - Carry Position	7.1 in ( 18 cm )
Bucket Pin Height - Maximum Lift	10.6 ft ( 3 m )
Bucket Pin Reach - Maximum Lift	19.4 in ( 49 cm )
Clearance at Maximum Lift and Dump	94.5 in ( 240 cm )
Departure Angle	33 deg
Ground Clearance	0.8 ft ( 0 m )
Height - Top of Cab	7.0 ft ( 2 m )
Length - Track on Ground	69.6 in ( 177 cm )
Length - With Bucket on Ground	154.7 in ( 393 cm )
Length - Without Bucket	125.5 in ( 319 cm )
Maximum Dump Angle	54 deg
Maximum Overall Height	158.7 in ( 403 cm )
Maximum Reach - With Arms Parallel to Ground	51.9 in ( 132 cm )
Overall Length - Track	89.4 in ( 227 cm )
Rack Back Angle - Maximum Height	81 deg
Reach - Maximum Lift/Dump	33.6 in ( 85 cm )
Roll Back Angle	25 deg
Turning Radius from Center - Bucket (racked)	91.1 in ( 231 cm )
Turning Radius from Center - Coupler	58.1 in ( 148 cm )
Turning Radius from Center - Machine Rear	74.0 in ( 188 cm )
Vehicle Width (400 mm/15.7 in tracks)	76.0 in ( 193 cm )
Vehicle Width (450 mm/17.7 in tracks)	78.0 in ( 198 cm )
Engine
Bore	3.9 in ( 10 cm )
Displacement	232.0 cu in ( 3,802 cu cm )
Engine Model	Cat C3.8 DIT (turbo)
Gross Power	106.0 hp ( 79 kw )
Gross Power - SAE J1995	98.0 hp ( 73 kw )
Net Power	95.0 hp ( 71 kw )
Net Power - ISO 9249	95.0 hp ( 71 kw )
Net Power - SAE 1349	95.0 hp ( 71 kw )
Peak Torque - 1,500 rpm - SAE J1995	246.0 ft ( 75 m )
Stroke	4.7 in ( 12 cm )
General Specifications
category	COMPACT TRACK LOADERS
ENGINE POWER HP (KW)	106 (79)
MODEL	299D2
OPERATING LOAD LBS. (KG)	4,600 (2,087)
OPERATING WIDTH IN. (CM)	76 (193)
RATED OPERATING CAPACITY LBS. (KG) (35%)	3,200 (1,452)
RATED OPERATING CAPACITY LBS. (KG) (50%)	3,200 (1,452)
Hydraulic System
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	76.0 hp ( 57 kw )
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	32.0 gpm ( 121 lpm )
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	4,061.0 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	44.0 hp ( 33 kw )
Hydraulic Flow - Standard - Loader Hydraulic Flow	23.0 gpm ( 87 lpm )
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3,335.0 psi
Loader
Operating Load Rating	4,600.0 lbs ( 2,087 kg )
Operating Width	76.0 in ( 193 cm )
Noise Level
Inside Cab*	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	104 dB(A)
Operating Specifications
Breakout Force - Lift Cylinder	6,162.0 lbs ( 2,795 kg )
Breakout Force - Tilt Cylinder	7,270.0 lbs ( 3,298 kg )
Ground Contact Area - With 400 mm/15.7 in Track	2,184.0 cu in ( 35,789 cu cm )
Ground Contact Area - With 450 mm/17.7 in Track	2,463.0 cu in ( 40,361 cu cm )
Ground Pressure - With 400 mm/15.7 in Track	5.2 psi
Ground Pressure - With 450 mm/17.7 in Track	4.6 psi
Rated Operating Capacities - 35% Tipping Load	3,200.0 lbs ( 1,452 kg )
Rated Operating Capacities - 50% Tipping Load	4,600.0 lbs ( 2,087 kg )
Rated Operating Capacity with Optional Counterweight	4,860.0 lbs ( 2,204 kg )
Tipping Load	9,200.0 lbs ( 4,173 kg )
Power Train
Travel Speed - Forward or Reverse - One Speed	5.2 mph ( 8 kph )
Travel Speed - Forward or Reverse - Two Speed	8.4 mph ( 14 kph )
Service Refill Capacities
Cooling System	4.1 gal ( 16 l )
Diesel Exhaust Fluid (DEF) Tank	5.0 gal ( 19 l )
Engine Crankcase	3.5 gal ( 13 l )
Fuel Tank	32.2 gal ( 122 l )
Hydraulic System	14.5 gal ( 55 l )
Hydraulic Tank	10.3 gal ( 39 l )
