Caterpillar D10T For Sale in Harrisburg, PA

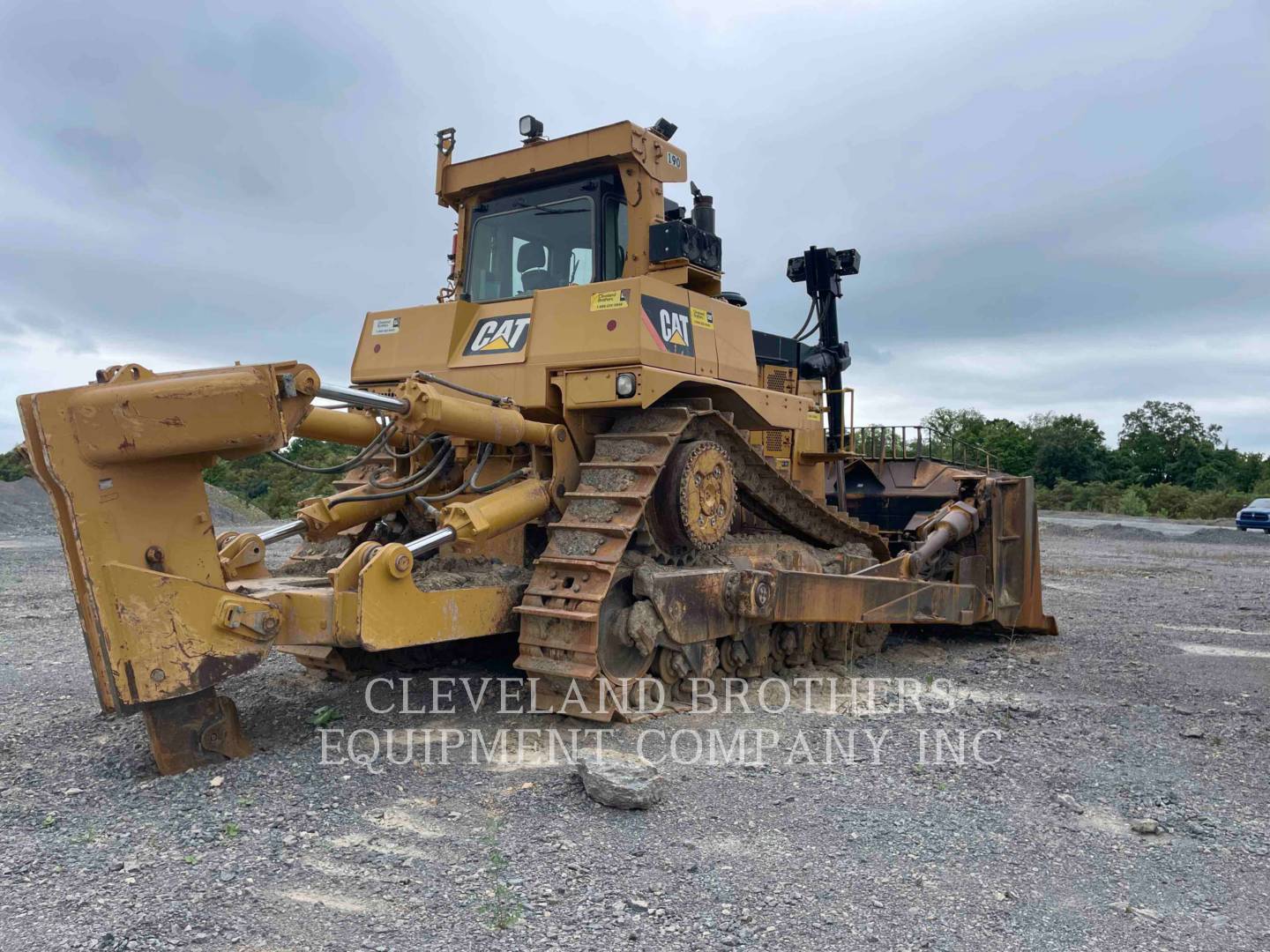

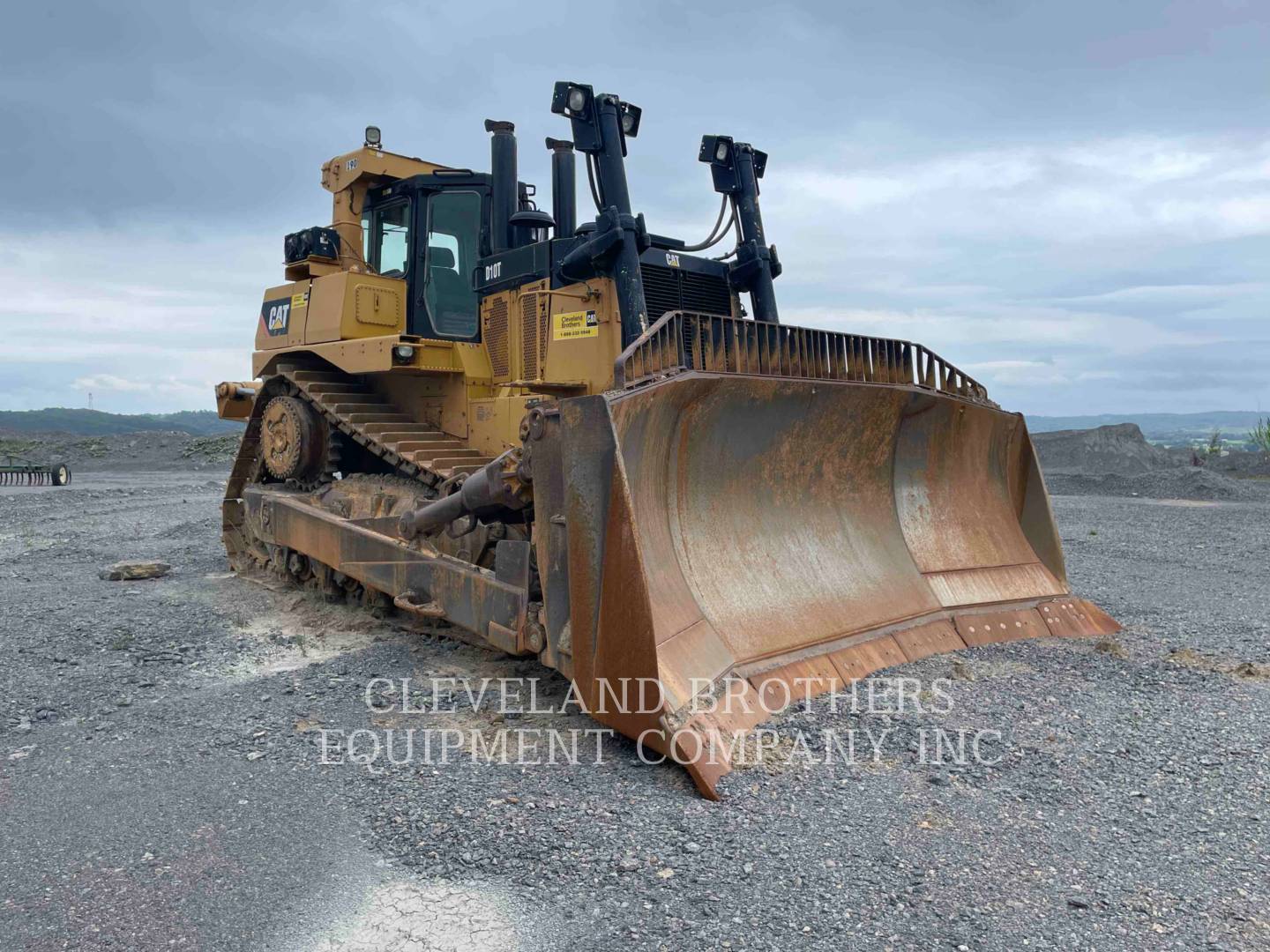

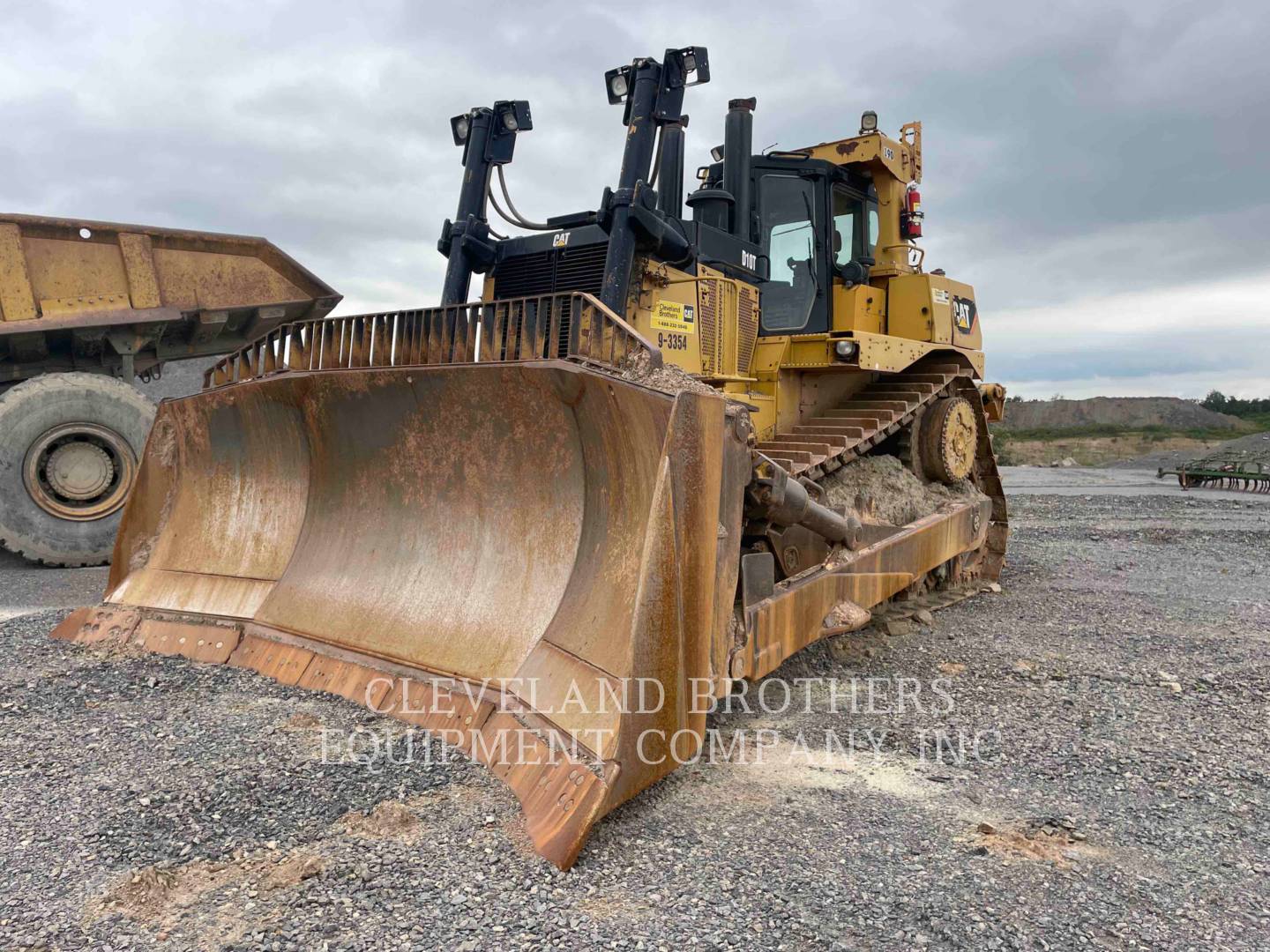

Name: Caterpillar D10T
Brand: Caterpillar
Price: 1120000 USD
Availability: InStock

❮

❯

For Sale: $1,120,000.00 USD

Apply for Financing

Cleveland Brothers

Cleveland Brothers Dealer Info

Cleveland Brothers Website

Click here to email Cleveland Brothers.

Contact: Erin Westbrook

Click for Phone Number

Machine Info:

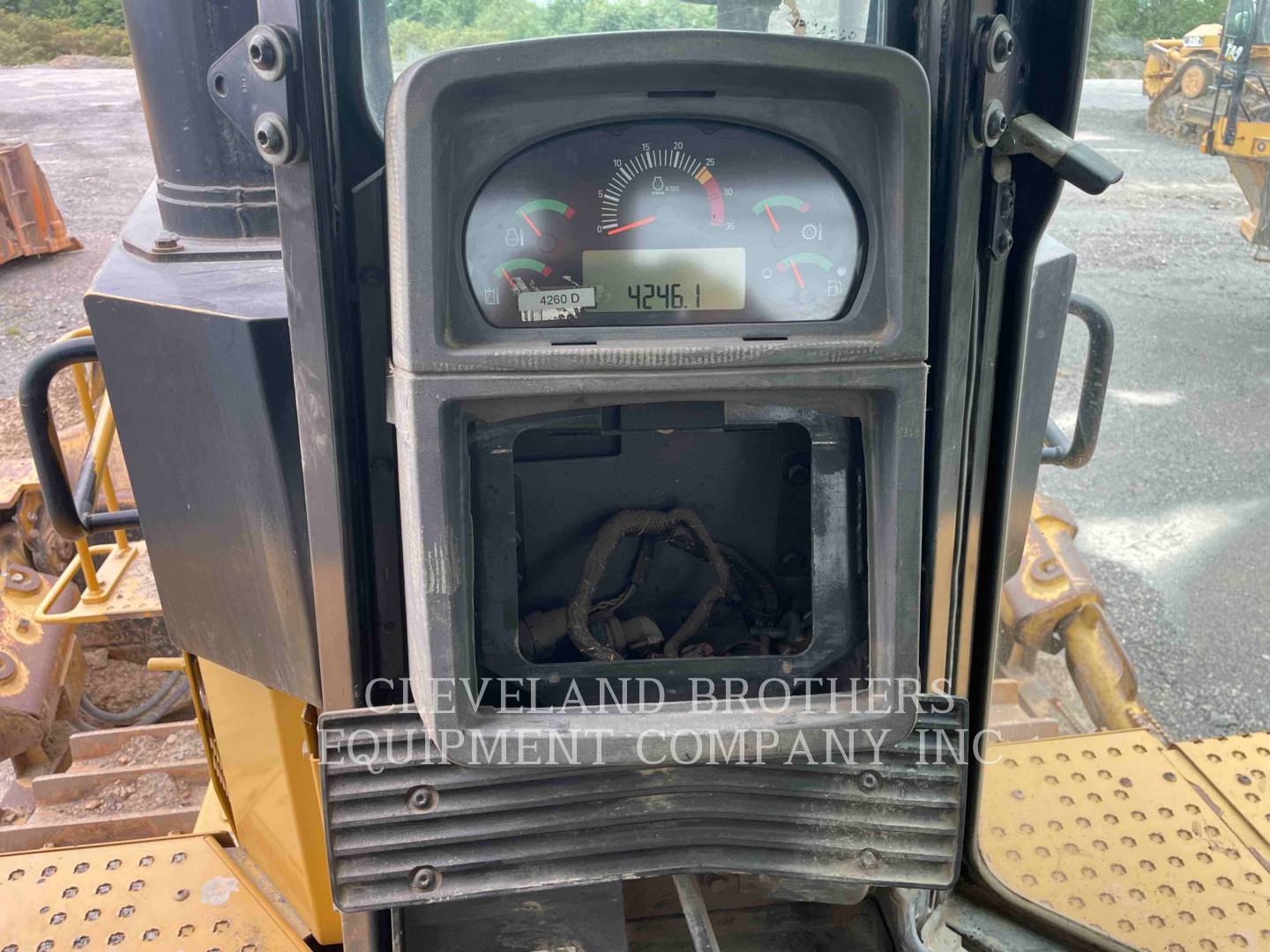

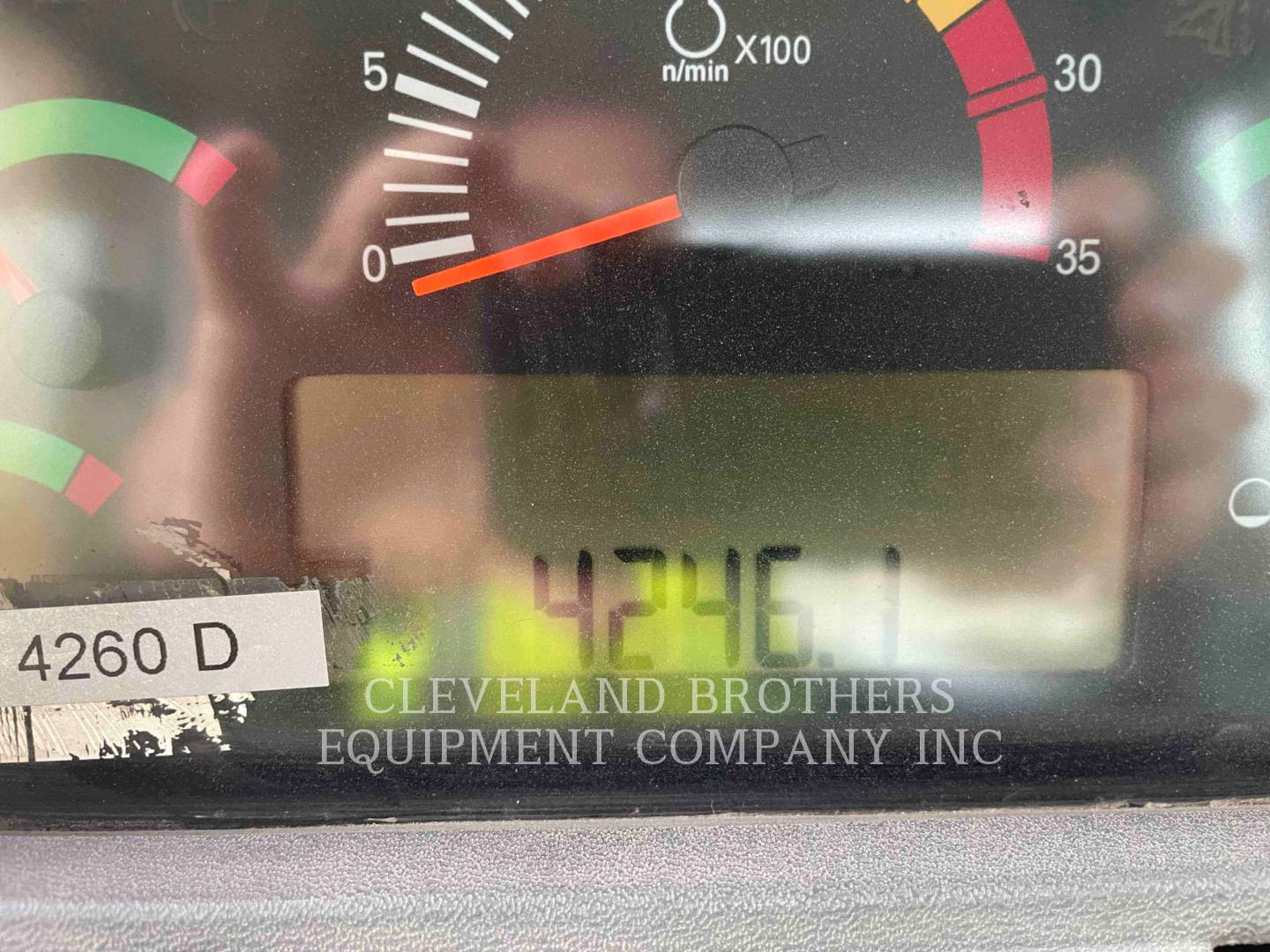

Hours:	4246

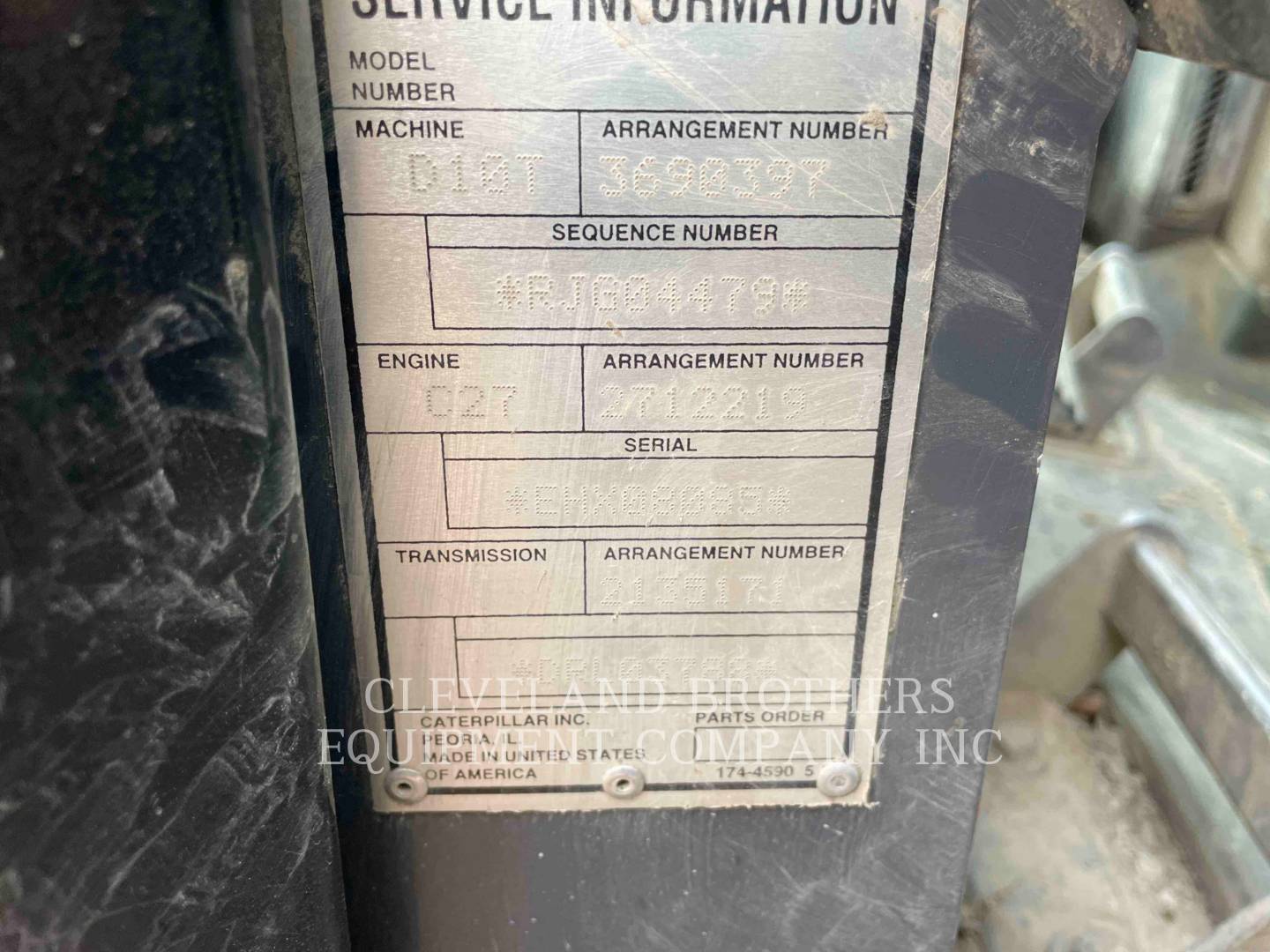

Serial Number:	RJG04479
Machine Location:	HARRISBURG, PA
More Information:	https://catused.com/cu/10152584

Description:

AUTOMATIC PRELUBE SYSTEM, BLADT TILT DUAL, CAT D10T TRACK TYPE TRACTOR, CYLINDER LIFT, HYDRAULIC PIN PULLER, Online Owner's Manual , Pilot Control, TC,TD RETARDER, TRANSMISSION AND DRIVE LINE

Machine Details:

GENERAL CONDITION
Machine Starts and is Operable	Yes
GENERAL APPEARANCE
Cleaning Required	Yes
SAFETY ITEMS
ROPS Certification Plate	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes

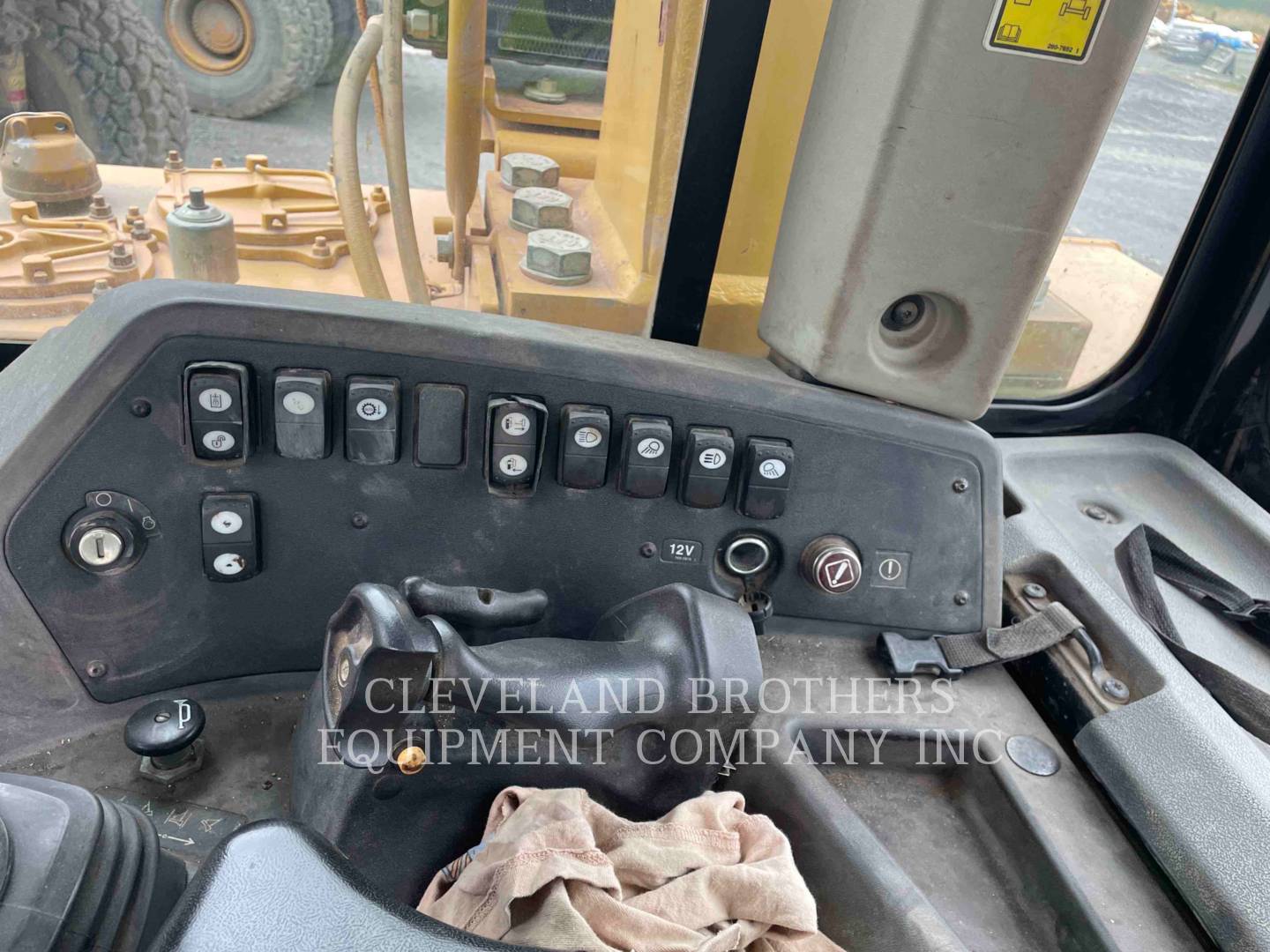

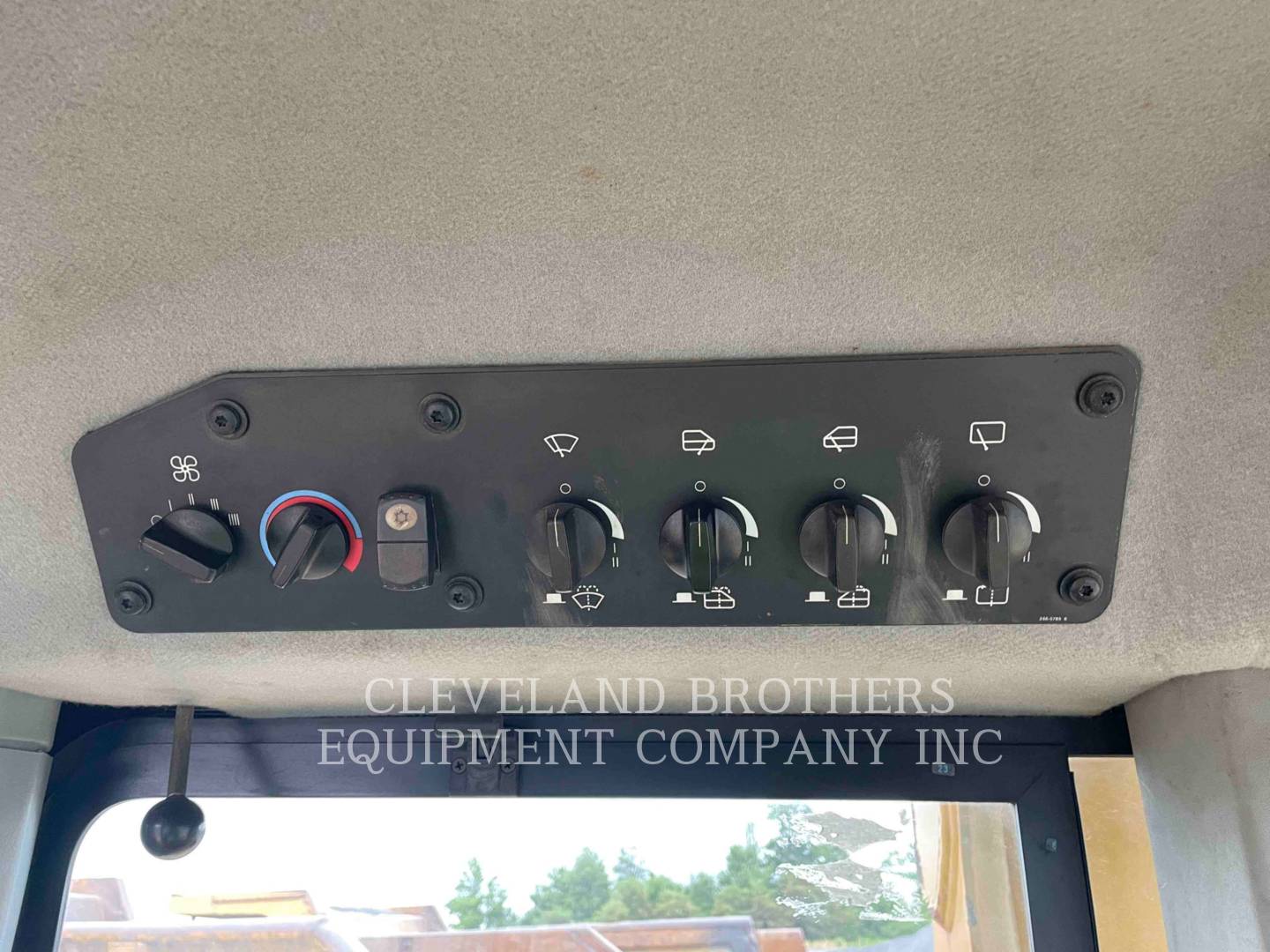

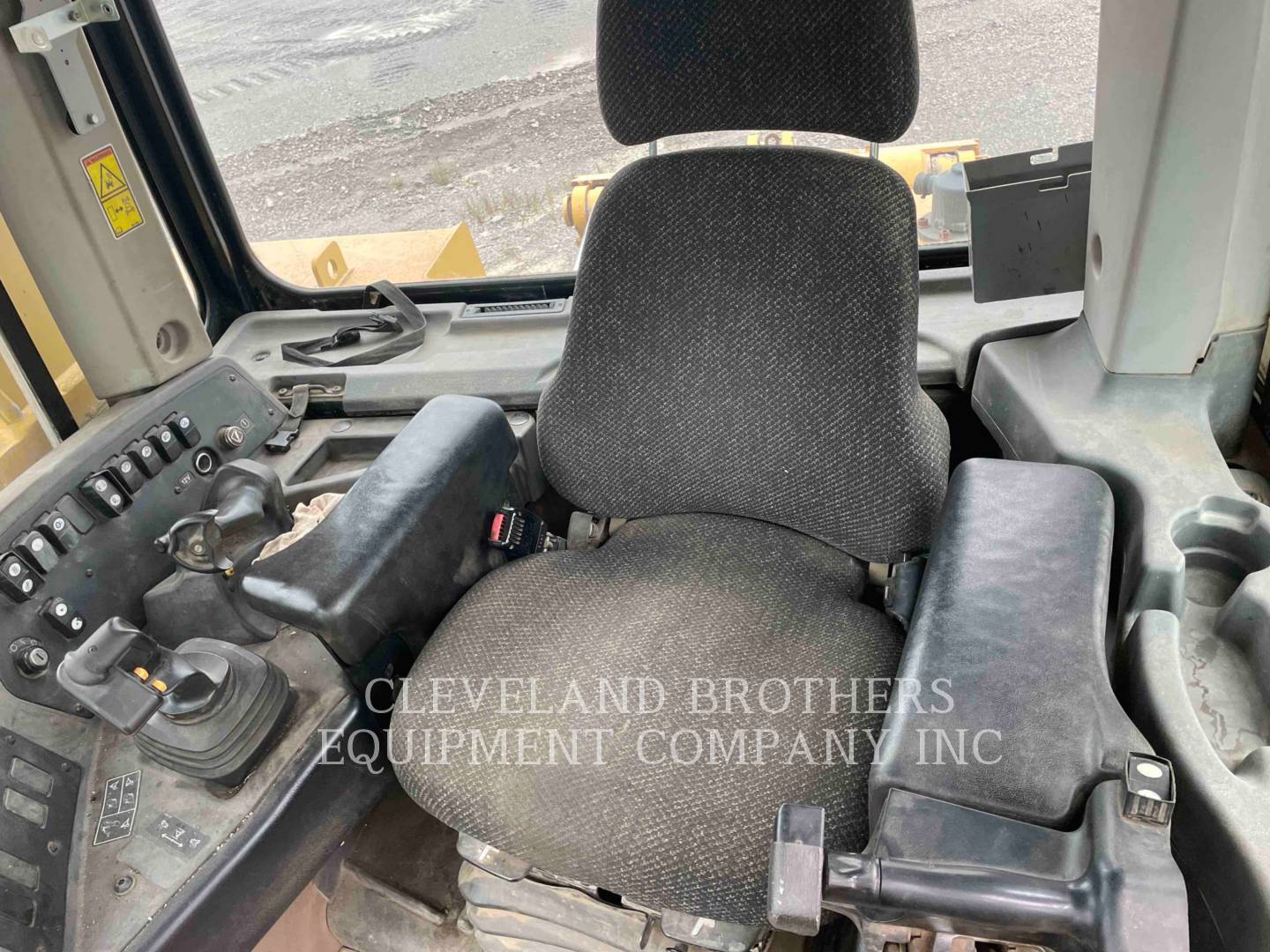

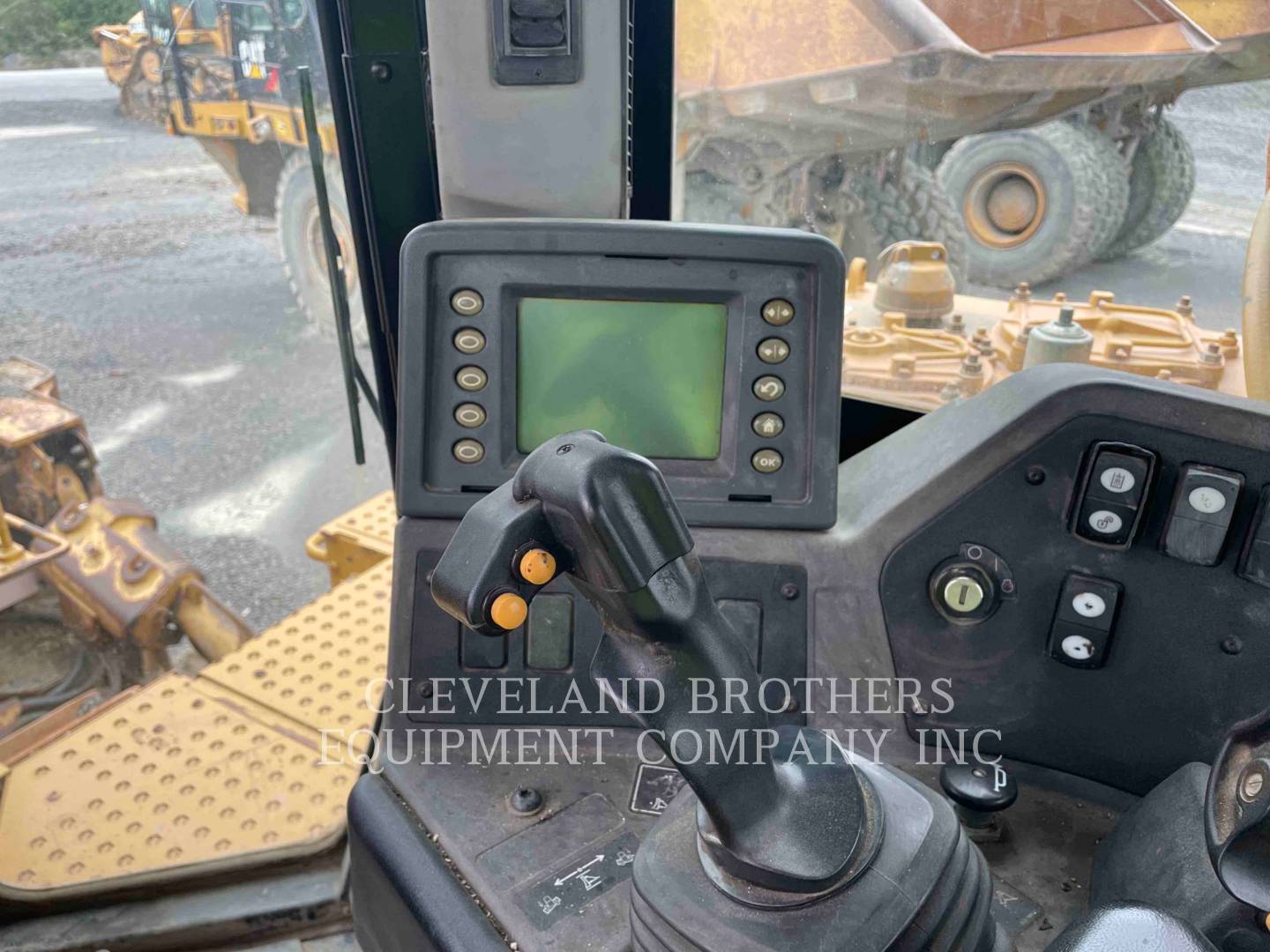

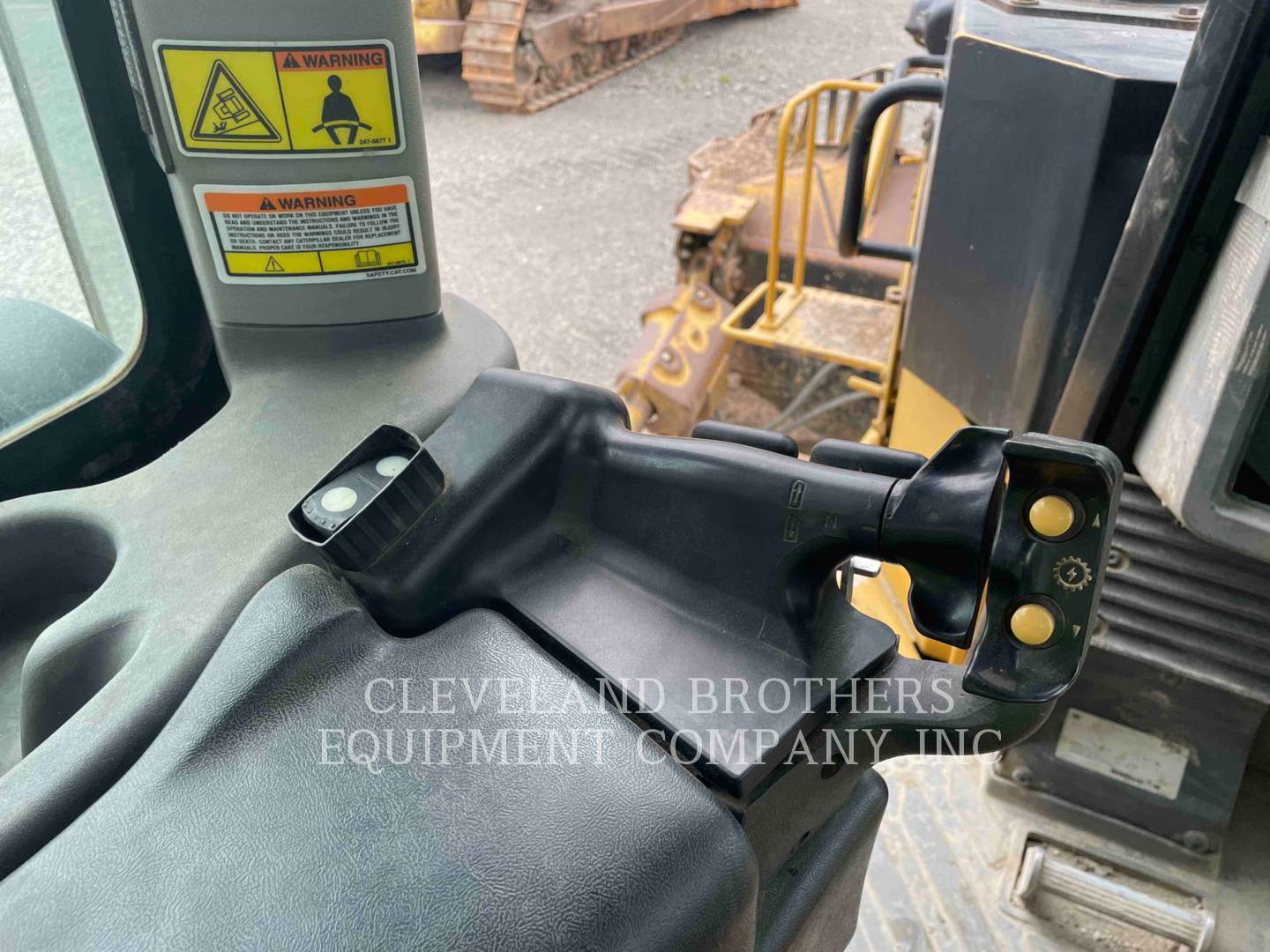

OPERATOR STATION
Current O&MM	Yes
Current Safety Manual	Yes
ENGINE
Apparent Other Engine Damage	No
Blow By	No
Fuel Leaks	No
Knocking	No
Oil Leaks	No
Water in Oil	No
COOLING SYSTEM
Compression in Radiator	No
Folded Core Radiator	No
ELECTRICAL, STARTING AND CHARGING SYSTEM
Ether Aid	Yes
TRANSMISSION
Leaks - TRANSMISSION	No
Transmission - Noisy	No
STEERING
Steering Clutch	Good
Steering Operating Condition	Good
BRAKE
Transmission - Noisy	2nd
HYDRAULICS
Leaks - HYDRAULICS	No

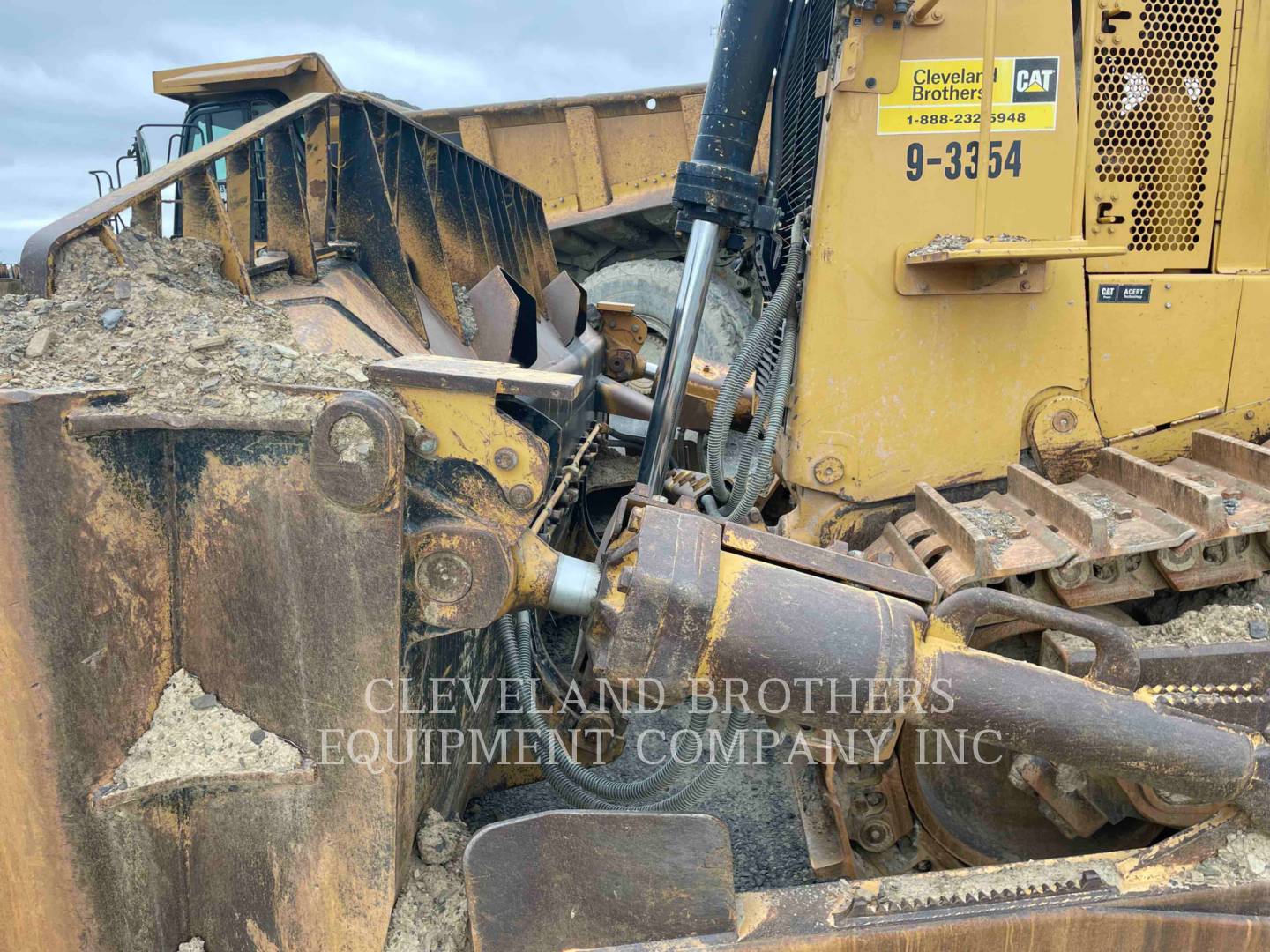

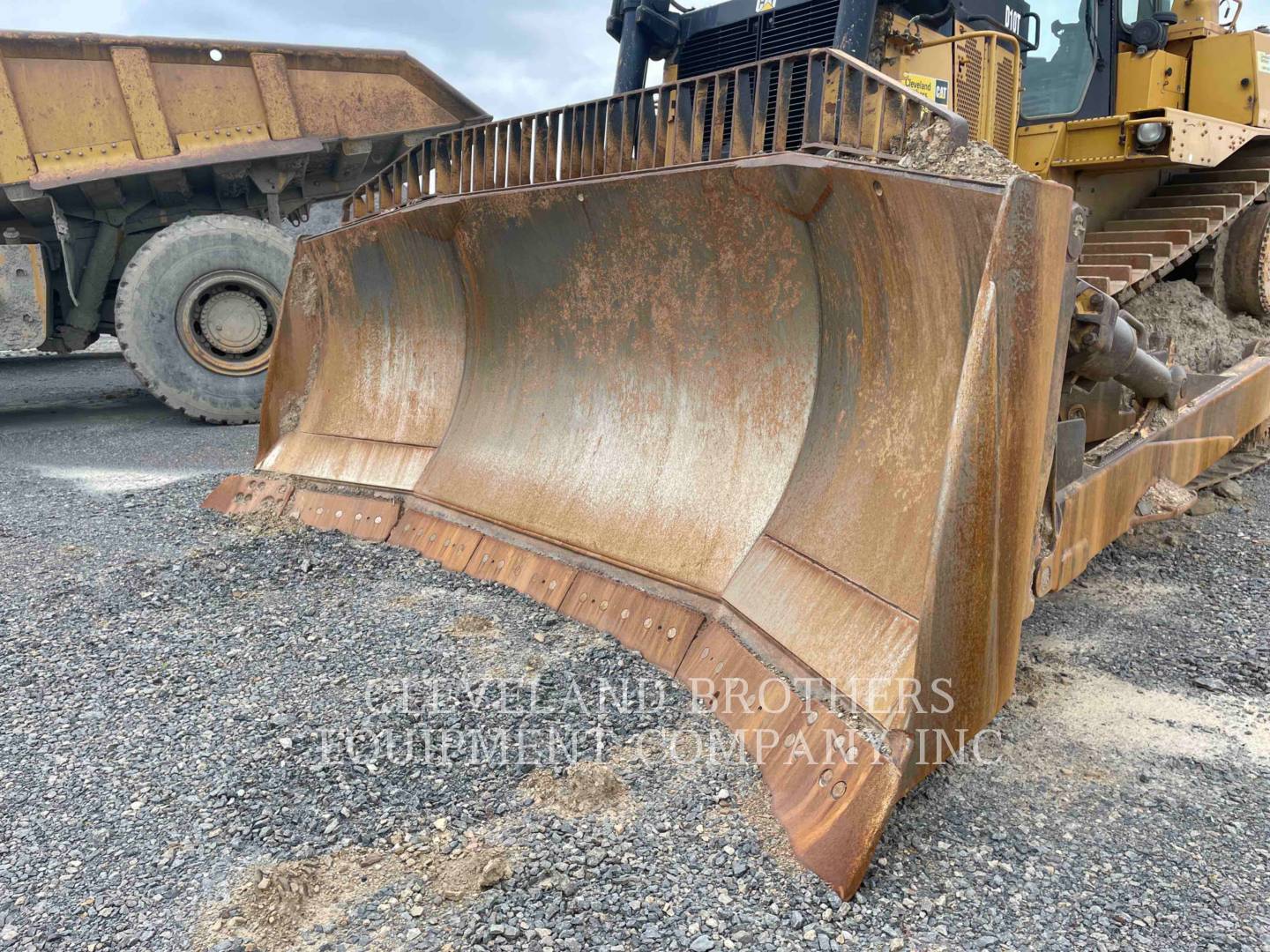

BLADE
Cutting Edge & Bits	Good
Face / Moldboard	Good
Knuckle	Good
Pins	Fair
Push Arm	Good
Spill Rack	Good
Tower	Good
Trunnions	Good

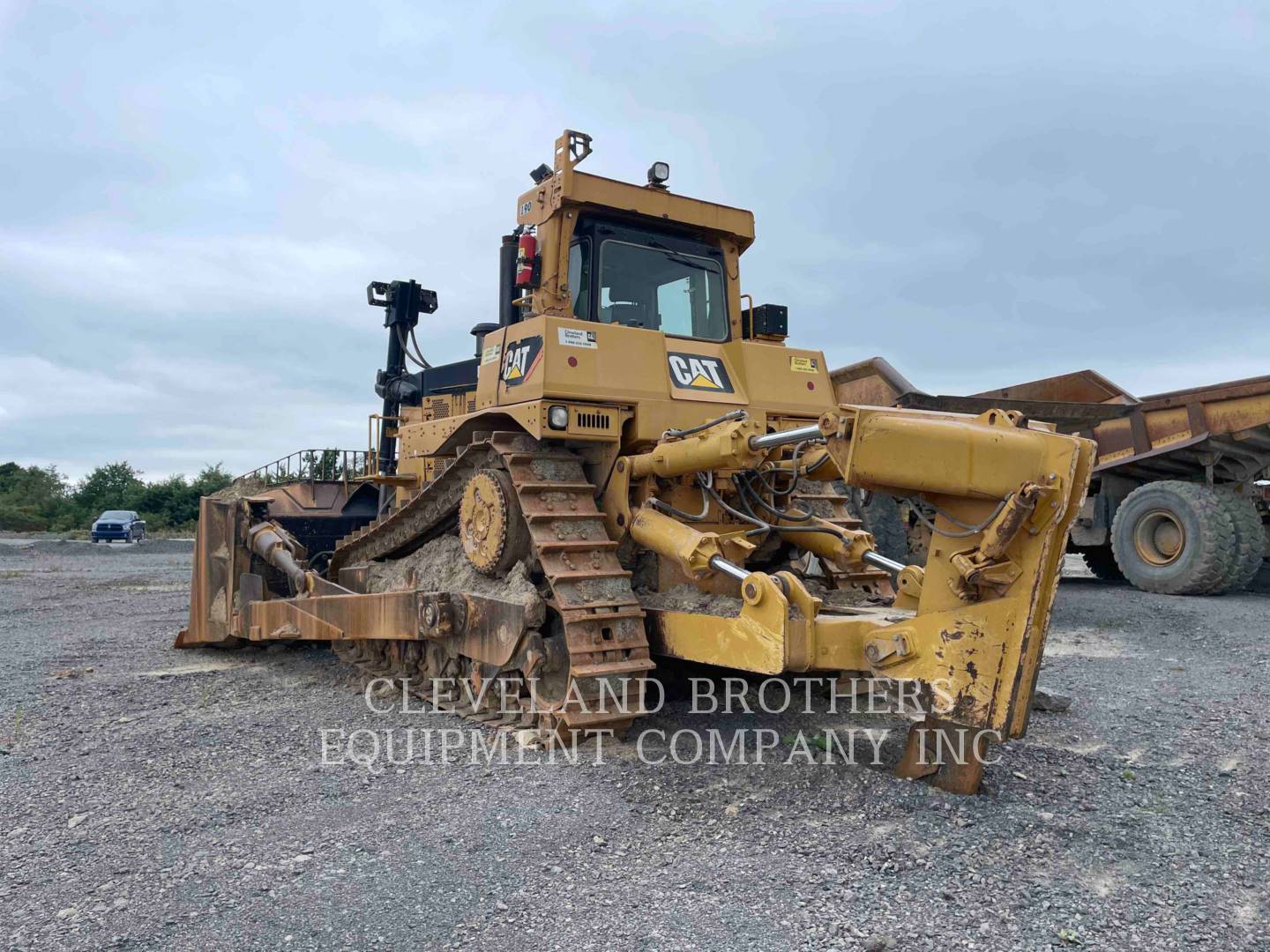

RIPPER / GRAPPLE / WINCH
Beam / Frame	Good
Brackets / Studs	Good
Pins & Bushings	Good
Ripper Lift Cylinder	Good
Ripper Tilt Cylinder	Good
Shanks / Get	Poor
UNDERCARRIAGE
Pins & Bushings Turned?	No
FINAL DRIVES
Housings, Left	Good
Housings, Right	Good
Planetaries / Differential, Left	Good
Planetaries / Differential, Right	Good

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Ground Clearance	2.0 ft ( 1 m )
Height - Top of Cab	13.4 ft ( 4 m )
Length of Track on Ground	12.7 ft ( 4 m )
Length w/ Blade	24.7 ft ( 8 m )
Length w/o Blade	17.5 ft ( 5 m )
Width Over Tracks	10.3 ft ( 3 m )

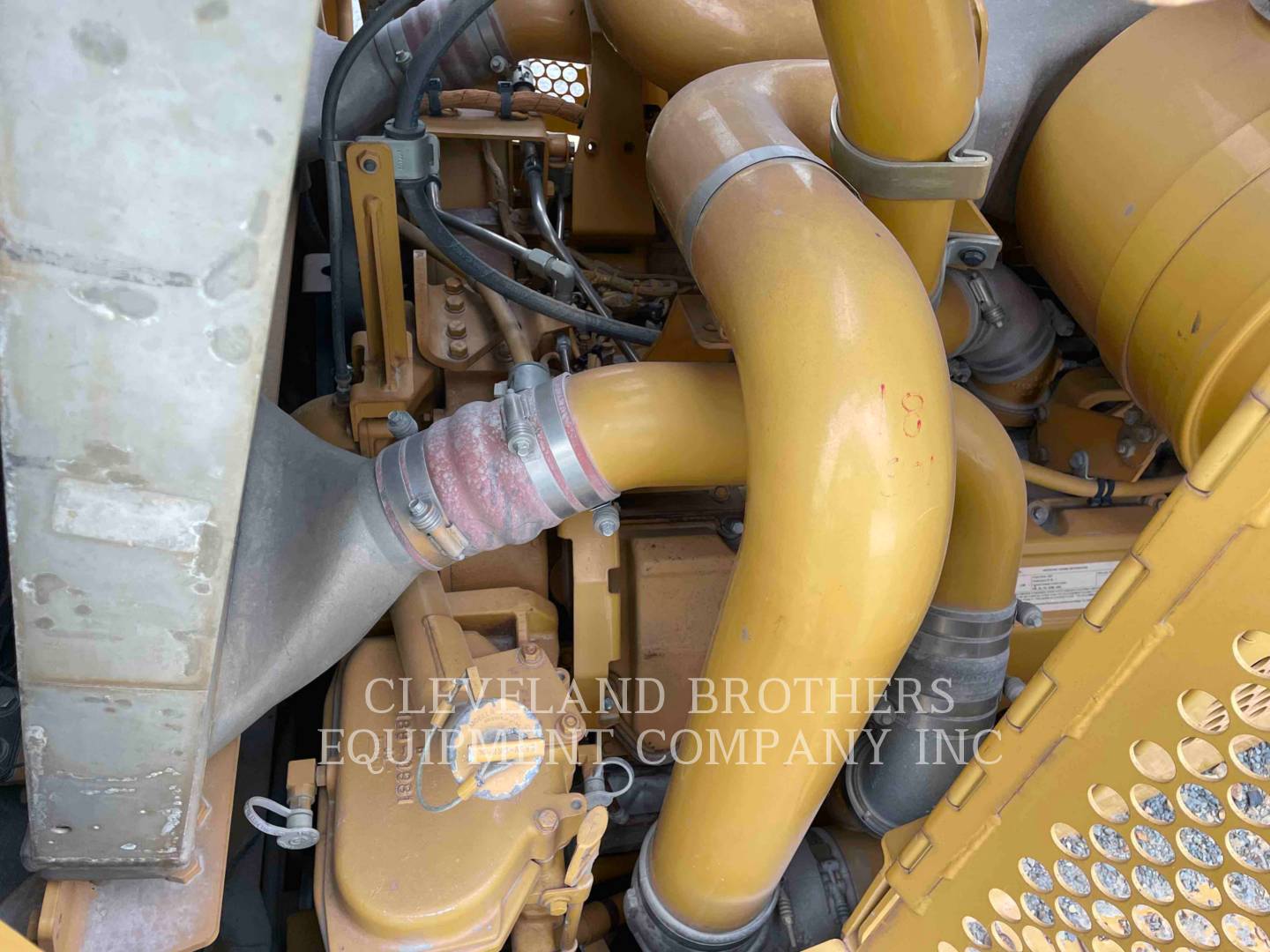

Engine
Aspiration	Turbocharged
Bore	5.4 in ( 14 cm )
Displacement	1,647.5 cu in ( 26,998 cu cm )
Engine Model	C27 ACERT
Flywheel Power	580.0 hp ( 433 kw )
Gross Power	646.0 hp ( 482 kw )
Make	Cat
Model	C27 ACERT
Net Power	580.0 hp ( 433 kw )
Number of Cylinders	12.0
Power Measured @	1,800.0 rpm
Stroke	6.0 in ( 15 cm )
Hydraulic System
Pump Flow Capacity	107.0 gpm ( 405 lpm )
Pump type	gear driven
Relief Valve Pressure	2,725.0 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	34.9 gal ( 132 l )
Engine Oil Capacity	18.0 gal ( 68 l )
Final Drives Fluid Capacity	6.0 gal ( 23 l )
Fuel Capacity	293.0 gal ( 1,109 l )
Hydraulic Fluid Capacity	38.0 gal ( 144 l )
Operating Voltage	24.0 volts
Operating Weight	144,986.0 lbs ( 65,765 kg )
Service Refill Capacities
Fuel Tank	318.0 gal ( 1,204 l )
Standard Blade
Capacity	24.2 cu yd ( 19 cu m )
Height	81.0 in ( 206 cm )
Width	15.9 ft ( 5 m )
Standards
FOPS	SAE J/ISO 3449 APR98 Level II ISO 3449:1992 Level II
ROPS	SAE J1040 MAY94 ISO 3471:1994
Transmission
1 Forward	2.5 mph ( 4 kph )
1 Reverse	3.2 mph ( 5 kph )
2 Forward	4.5 mph ( 7 kph )
2 Reverse	5.6 mph ( 9 kph )
3 Forward	7.9 mph ( 13 kph )
3 Reverse	9.7 mph ( 16 kph )
Max Speed - Forward	7.9 mph ( 13 kph )
Max Speed - Reverse	9.8 mph ( 16 kph )
Number of Forward Gears	3.0
Number of Reverse Gears	3.0
Transmission Type	Power shift
Undercarriage
Ground Contact Area	7,326.0 cu in ( 120,052 cu cm )
Number of Shoes per Side	44.0
Number of Track Rollers per Side	8.0
Standard Shoe Size	24.0 in ( 61 cm )
Track Gauge	8.4 ft ( 3 m )
Track Pitch	10.2 in ( 26 cm )
