Equipment ↠ Caterpillar ↠ Crawler Loaders ↠ THIS Caterpillar 953D

Caterpillar 953D For Sale in Harrisburg, PA

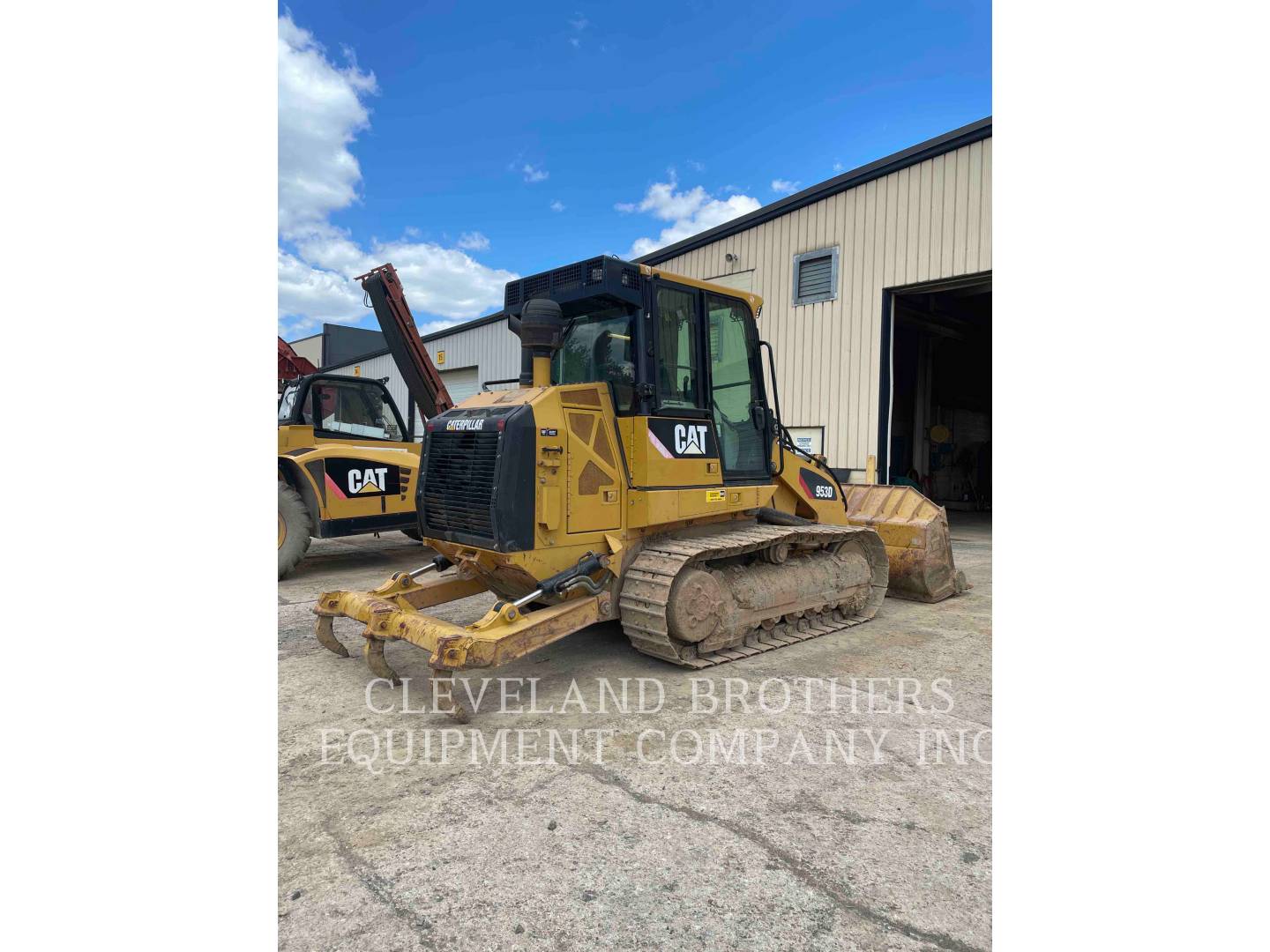

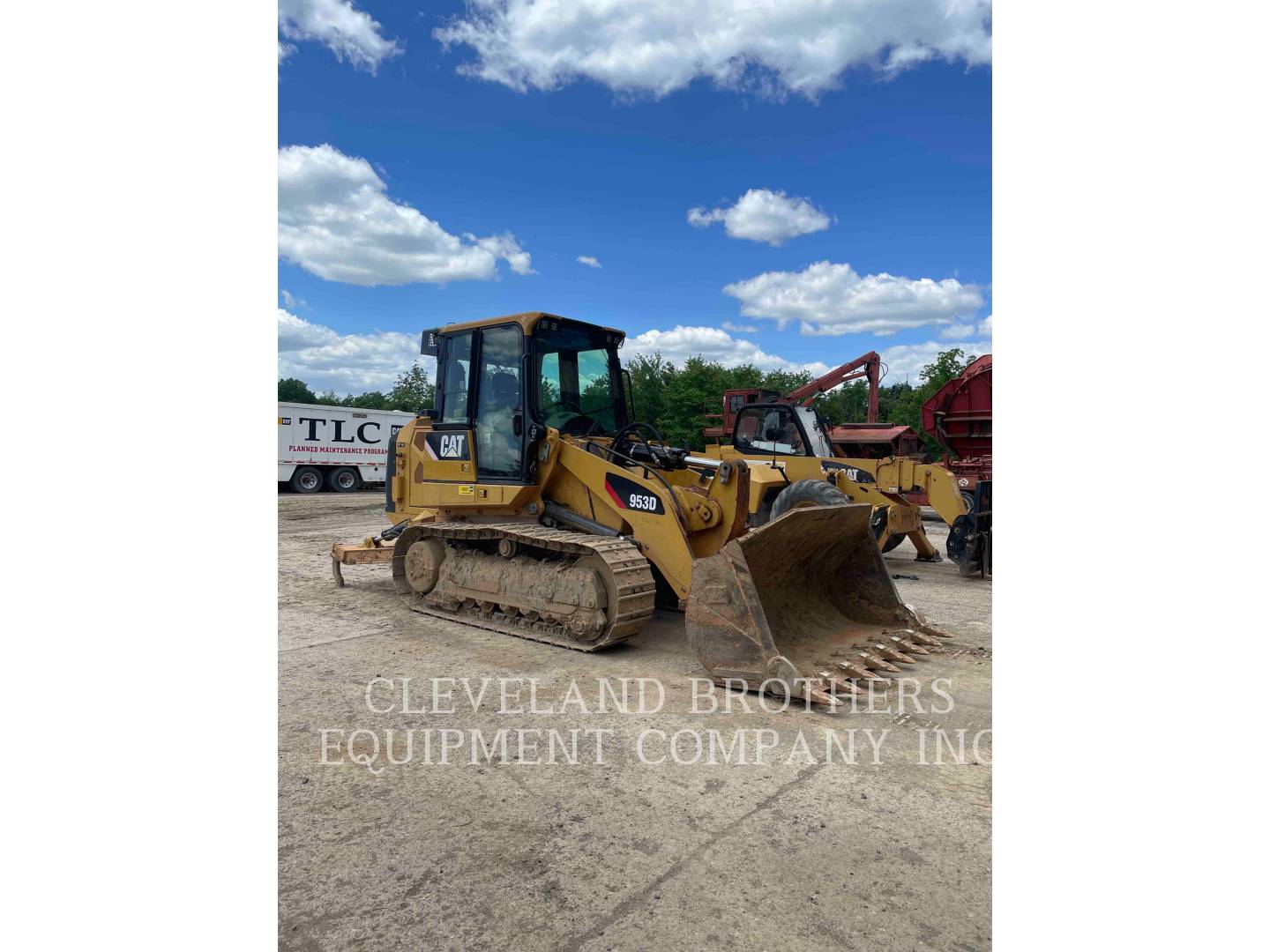

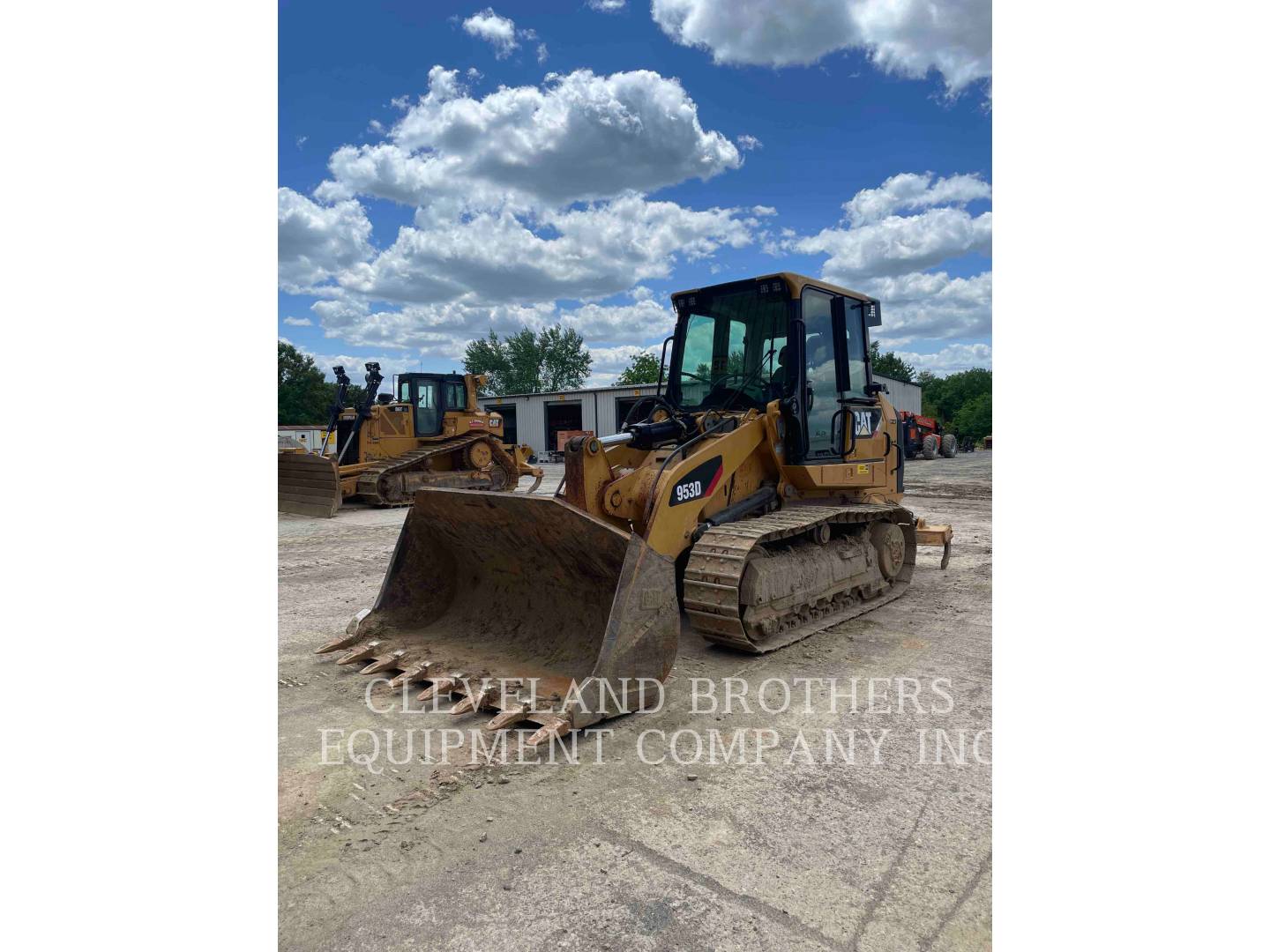

Name: Caterpillar 953D
Brand: Caterpillar
Price: 162000 USD
Availability: InStock

❮

❯

For Sale: $162,000.00 USD

Apply for Financing

Cleveland Brothers

Cleveland Brothers Dealer Info

Cleveland Brothers Website

Click here to email Cleveland Brothers.

Contact: Erin Westbrook

Click for Phone Number

Machine Info:

Hours:	5268
Serial Number:	LBP01291
Machine Location:	HARRISBURG, PA
More Information:	https://catused.com/cu/10131318

Description:

19IN DG SHOES, AIR SUSPENSION SEAT, STANDARD, AM/FM/CD RADIO, CAT 953D TRACK LOADER, Online Owner's Manual , PRODUCT LINK 321, ROPS - Enclosed, STANDARD DEMAND FAN, STANDARD HYDRAULIC OIL, TRANSMISSION CONTROL V-LEVER

Machine Details:

GENERAL APPEARANCE
Cleaning Required	No
S.O.S. Taken	No
SAFETY ITEMS
ROPS	Yes
Safety Decals In Place	Yes
Safety Decals Legible	Yes
OPERATOR STATION
Back Up Alarm	Yes
Current O&MM	Yes
Current Parts Manual	Yes
Current Safety Manual	Yes
ROPS Certification Plate	Yes
ENGINE
Blow By	No
Compression in Radiator	No
Emissions Decal	Yes
Knocking	No
Oil Leaks	No
Water in Oil	No
COOLING SYSTEM
Leaks - COOLING SYSTEM	No
ELECTRICAL, STARTING AND CHARGING SYSTEM
Block Heater	No
Ether Aid	Yes
TRANSMISSION
Leaks - TRANSMISSION	No
Transmission - Noisy	No
STEERING
Steering Linkage	Good
Steering Motor	Good
Steering Valves / Pumps	Good
BRAKE
Transmission - Noisy	F1
HYDRAULICS
Leaks - HYDRAULICS	Yes
BUCKET
Bucket Bottom	Good
Bucket Floor	Good
Bucket Linkage - BUCKET	Good
Bucket Linkage - BUCKET 1	Good
Bucket Sides	Good
Cutting Edges	Good
Loader Frame	Good
Loader Pins & Bushings	Good
Segments	Good
Teeth / Adapters	Good
RIPPER / GRAPPLE / WINCH
Brackets / Studs	Good
Control Linkage - RIPPER / GRAPPLE / WINCH	Good
Lines - RIPPER / GRAPPLE / WINCH	Good
Operates Forward	Good
Pins & Bushings	Good
Pump - RIPPER / GRAPPLE / WINCH	Good
Shanks / Get	Good
UNDERCARRIAGE
Pins & Bushings Turned?	No
FINAL DRIVES
Differential	Good
Housings, Left	Good
Housings, Right	Good
Planetaries, Left	Good
Planetaries, Right	Good

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Clearance at Full Height and Dump	9.6 ft ( 3 m )
Ground Clearance	1.4 ft ( 0 m )
Height - Top of Cab	10.2 ft ( 3 m )
Length to Front of Track	14.4 ft ( 4 m )
Length with Bucket on Ground	19.5 ft ( 6 m )
Reach at Dump Height	3.3 ft ( 1 m )
Width to Outside of Tracks	7.5 ft ( 2 m )
Engine
Displacement	402.8 cu in ( 6,601 cu cm )
Engine Model	C6.6 ACERT
Make	Cat
Model	C6.6 ACERT
Net Power	148.0 hp ( 110 kw )
Number of Cylinders	6.0
Power Measured @	2,000.0 rpm
Hydraulic System
Dump Time	1.3 seconds
Lower Time	2.0 seconds
Pump Flow Capacity	30.8 gpm ( 117 lpm )
Pump Type	Hydrostatic drive
Raise Time	5.9 seconds
Relief Valve Pressure	3,990.0 psi
Operating Specifications
Alternator Supplied Amperage	95 amps
Breakout Force Bucket	36,093.0 lbs ( 16,372 kg )
Bucket Capacity - heaped	2.3 cu yd ( 2 cu m )
Bucket Capacity - struck	2.0 cu yd ( 2 cu m )
Cooling System Fluid Capacity	8.0 gal ( 30 l )
Engine Oil Capacity	4.4 gal ( 17 l )
Final Drive Fluid Capacity - each	2.8 gal ( 11 l )
Fuel Capacity	83.5 gal ( 316 l )
Hydraulic System Fluid Capacity	18.5 gal ( 70 l )
Max Speed	5.8 mph ( 9 kph )
Operating Voltage	24.0 volts
Operating Weight	34,341.0 lbs ( 15,577 kg )
Static Tipping Load	25,162.0 lbs ( 11,413 kg )
Undercarriage
Ground Contact Area	2,790.0 cu in ( 45,720 cu cm )
Ground Pressure	9.5 psi
Length of Track on Ground	7.7 ft ( 2 m )
Number of Shoes per Side	37.0
Number of Track Rollers per Side	6.0
Track Gauge	71.0 in ( 180 cm )
Track Shoe Width	18.8 in ( 48 cm )
