Caterpillar 14H For Sale in Pleasant Grove, CA

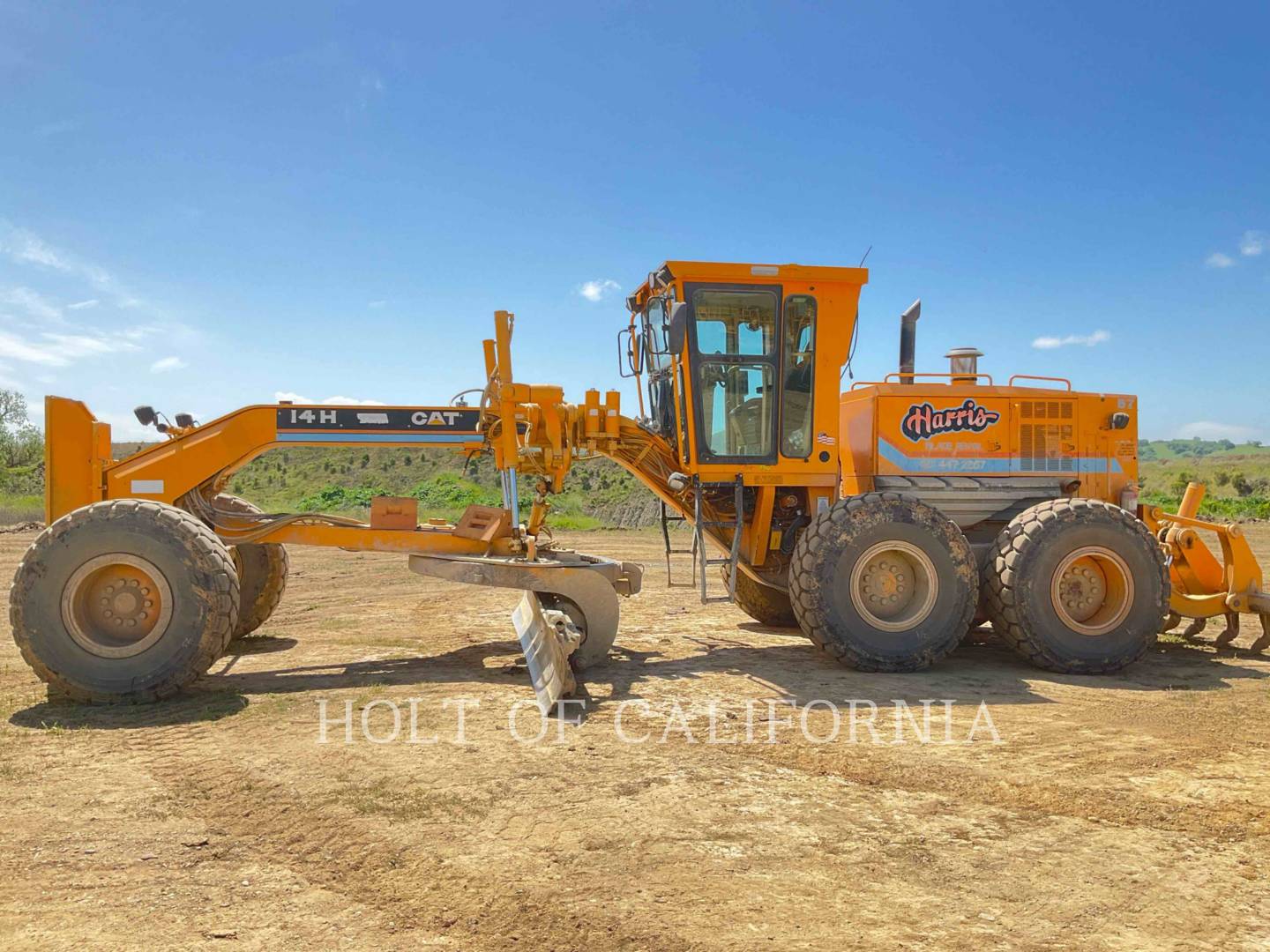

Name: Caterpillar 14H
Brand: Caterpillar
Price: 159500 USD
Availability: InStock

❮

❯

For Sale: $159,500.00 USD

Apply for Financing

Holt of California CAT

Holt of California CAT Dealer Info

Holt of California CAT Website

Click here to email Holt of California CAT.

Contact: Mike Dutro

Click for Phone Number

Machine Info:

Hours:	14666

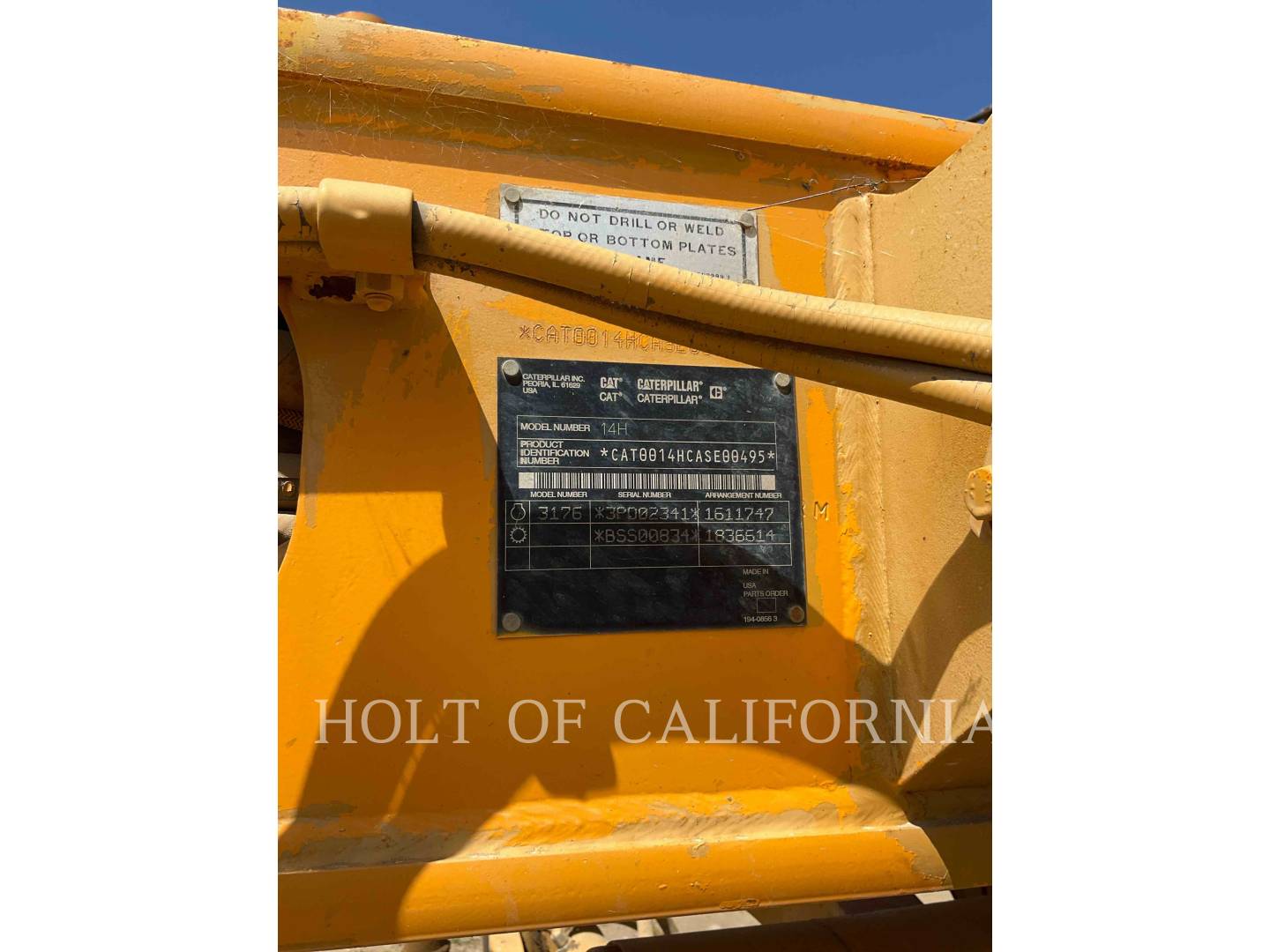

Serial Number:	ASE00495
Machine Location:	PLEASANT GROVE, CA
More Information:	https://catused.com/cu/10126661

Description:

Accugrade Ready, Air Conditioner, Air Suspension Seat, Auto Shift, Circle Clutch, Defroster Fan, Differential Lock, Drive - Tandem, Engine Was Replaced By Peterson CAT at 10,070 Hours (6/29/2016), Ether Aid, Guard, Transmission, Lighting, Mirrors, Moldboard Size - 16', Product Link, Pushblock, Radio - Bluetooth, Ripper - Multi-Shank, ROPS - Enclosed, Steering Type - Wheel, Throttle Lock

Machine Details:

GENERAL APPEARANCE
Cleaning Required	Yes
S.O.S. Taken	Yes
SAFETY ITEMS
ROPS	Yes

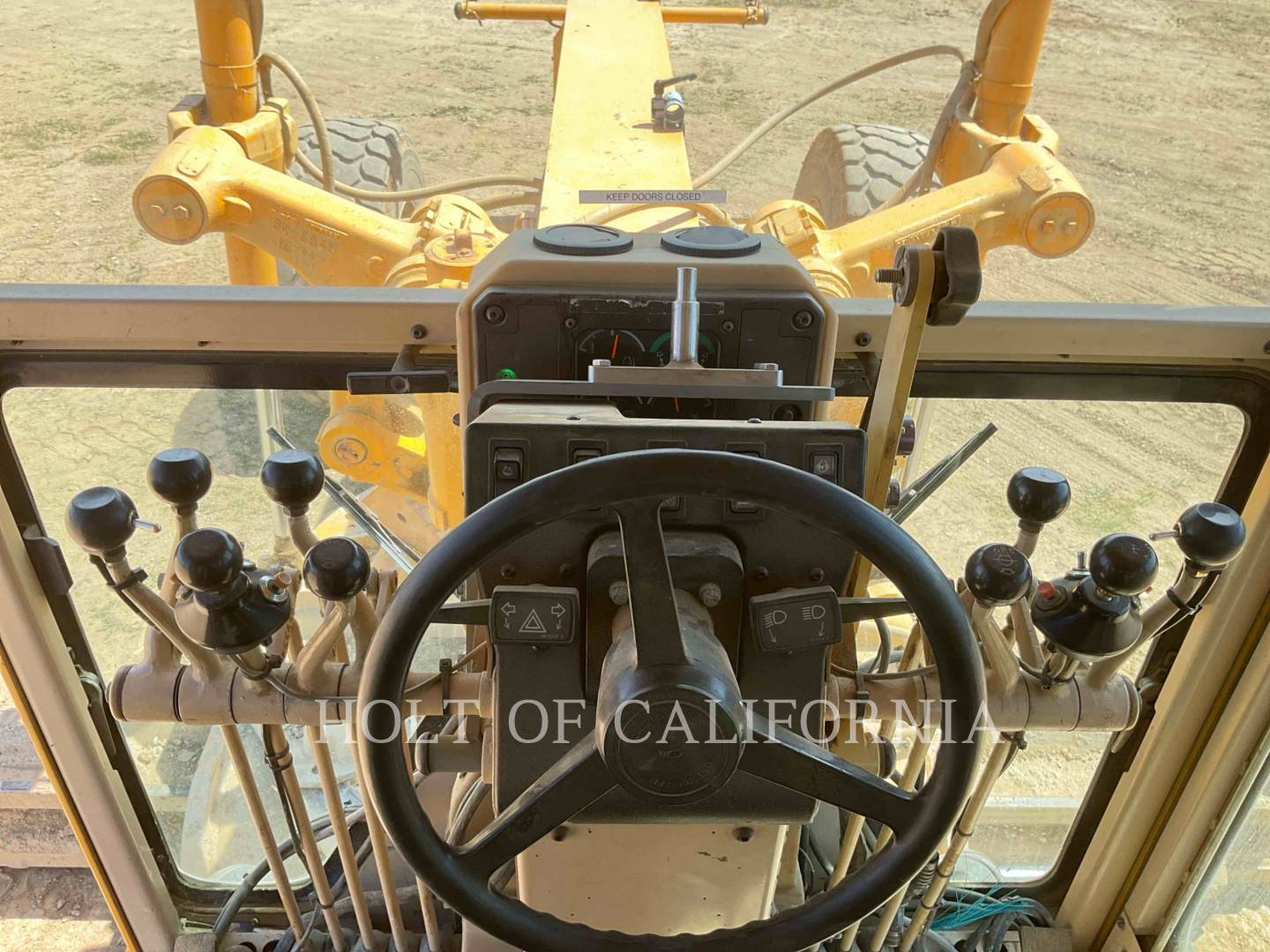

OPERATOR STATION
Current O&MM	Yes
Current Parts Manual	Yes
Current Safety Manual	Yes
ENGINE
Blow By	No
Compression in Radiator	No
Fluid Levels OK?	Yes
Knocking	No
Oil Leaks	Yes
Water in Oil	No
COOLING SYSTEM
Belts / Pulleys - COOLING SYSTEM	Good
Coolers	Good
Fan	Good
Hoses	Good
Radiator	Good
Water Pump	Good
ELECTRICAL, STARTING AND CHARGING SYSTEM
Signal Lights	Yes
TRANSMISSION
Leaks - TRANSMISSION	Yes
Transmission - Noisy	No
STEERING
Articulate P & B	Fair
King Pins	Good
Steering Cylinder	Good
Steering Linkage	Good
Tie Rods / Rod Ends	Good
Wheel Lean Cylinder - STEERING	Good
BRAKE
Accumulators	Good
Brake Linkage	Good
Compressor	Good
Control Valve	Good
Lines	Good
DRIVECHAIN / TANDEMS
Wheel Lugs & Rims	Good
HYDRAULICS
Leaks - HYDRAULICS	Yes
BLADE
Circle A Frame	Good
Face / Moldboard	Fair
RIPPER
Frame	Good
Lines / Fittings - RIPPER	Good

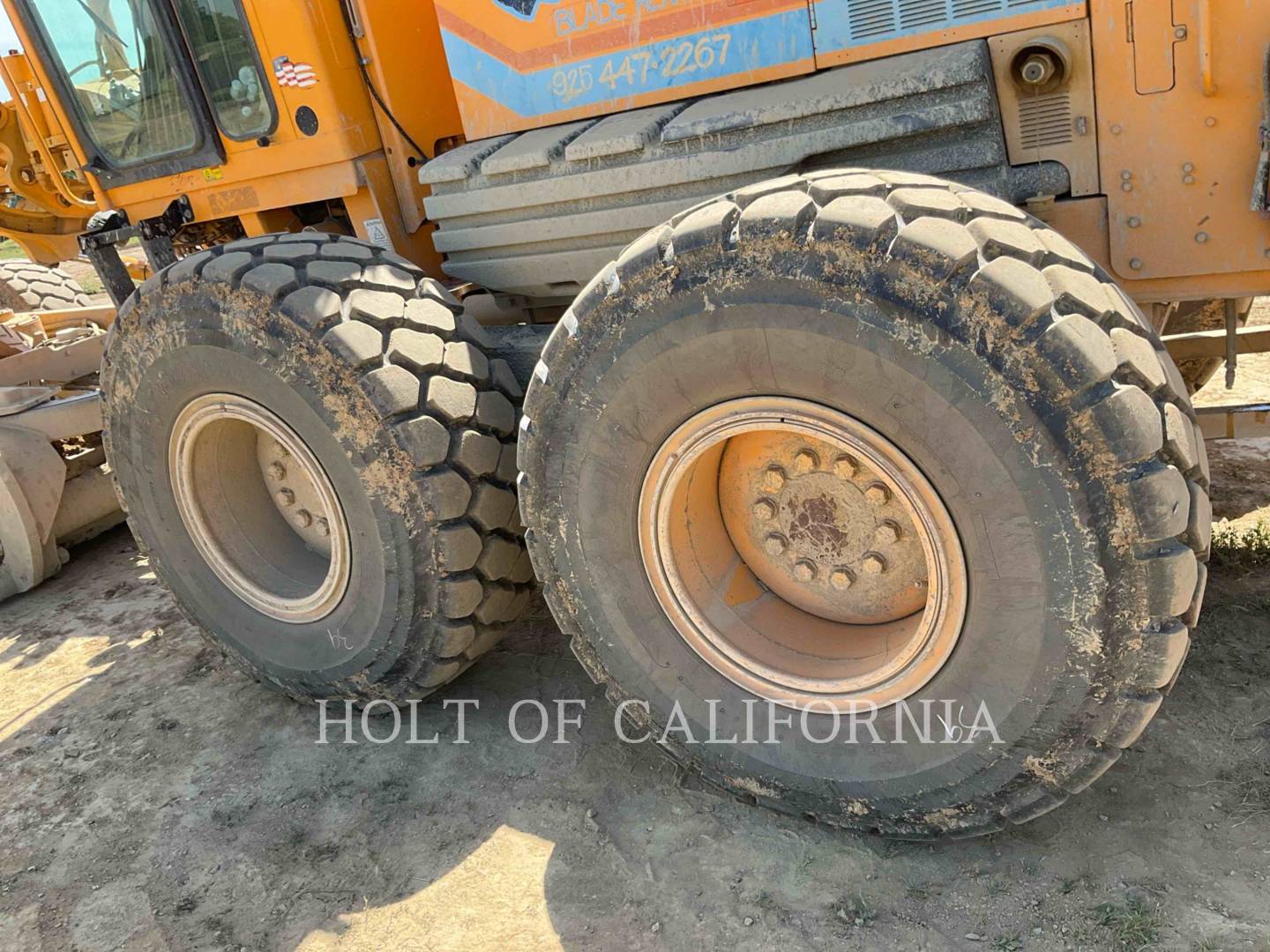

TIRES
Leaks - HYDRAULICS	Both front tires have light weather cracking but should run out okay
Leaks - HYDRAULICS	20.5R25
COMMENTS, MISC. REPAIRS, GENERAL REMARKS
Leaks - HYDRAULICS	Machine runs and operates, all functions perform normally. With acception to repairs needed and engine being replaced, machine is in overall fair condition.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	40 deg
Blade Tip Angle - Rear	5 deg
Diameter	71.8 in ( 182 cm )
Max Lift Above Ground	16.5 in ( 42 cm )
Max Reach Outside Tires - Left	81.0 in ( 206 cm )
Max Reach Outside Tires - Right	82.0 in ( 208 cm )
Shift Left	25.5 in ( 65 cm )
Shift Right	20.5 in ( 52 cm )
Dimensions
Front Ground Clearance	2.2 ft ( 1 m )
Height to Top of Isomount Cab	11.0 ft ( 3 m )
Rear Ground Clearance	1.3 ft ( 0 m )
Tandem Axle Wheelbase	5.5 ft ( 2 m )
Wheelbase	21.2 ft ( 6 m )
Width Over Tires	9.3 ft ( 3 m )
Engine
Net Power Gear 1-2	220.0 hp ( 164 kw )
Net Power Gear 4-6	240.0 hp ( 179 kw )
Net Power Gear 5-6	240.0 hp ( 179 kw )
Number of Cylinders	6.0
Power Measured @	2,000.0 rpm
Front Axle
Ground Clearance	2.2 ft ( 1 m )
Oscillation - Total	32 deg
Wheel Lean	18 deg
Hydraulic System
Pump Type	axial piston
Relief Valve Pressure	3,500.0 psi
Moldboard
Blade Down Pressure	34,517.8 lbs ( 15,657 kg )
Blade Pull at Max Weight	52,659.7 lbs ( 23,886 kg )
Max Depth of Cut	17.3 in ( 44 cm )
Moldboard Height	27.1 in ( 69 cm )
Moldboard Thickness	1.0 in ( 3 cm )
Side Shift Left	25.6 in ( 65 cm )
Side Shift Right	31.1 in ( 79 cm )
Operating Specifications
Alternator Supplied Amperage	50 amps
Circle Gearbox Fluid Capacity	1.6 gal ( 6 l )
Cooling System Fluid Capacity	12.8 gal ( 48 l )
Max Operation Weight - Front Axle	19,425.0 lbs ( 8,811 kg )
Max Operation Weight - Rear Axle	39,084.0 lbs ( 17,728 kg )
Max Operation Weight - Total	58,509.0 lbs ( 26,539 kg )
Operating Voltage	24.0 volts
Std Operation Weight - Front Axle	11,695.0 lbs ( 5,305 kg )
Std Operation Weight - Rear Axle	29,770.0 lbs ( 13,503 kg )
Tandem Case Fluid Capacity (each)	25.5 gal ( 97 l )
Tire Size	16-24 12PR (G-2)
Transmission Fluid Capacity	21.6 gal ( 82 l )
Steering System
Articulation Angle	20 deg
Transmission
Max Speed - Forward	26.6 mph ( 43 kph )
Max Speed - Reverse	29.4 mph ( 47 kph )
Number of Gears - Forward	8.0
Number of Gears - Reverse	8.0
Transmission Type	direct drive power shift planetary
