Equipment ↠ Caterpillar ↠ Motor Graders ↠ THIS 2012 Caterpillar 160M

2012 Caterpillar 160M For Sale in Bellevue, IA

Name: 2012 Caterpillar 160M
Brand: Caterpillar
Price: 488000 USD
Availability: InStock

❮

❯

For Sale: $488,000.00 USD

Apply for Financing

J.J. Scheckel

J.J. Scheckel Dealer Info

J.J. Scheckel Website

Click here to email J.J. Scheckel.

Contact: Josh Scheckel

Click for Phone Number

Machine Info:

Hours:	16920
Stock Number:	A03329
Machine Location:	BELLEVUE, IA
More Information:	https://jjscheckel.com/product/2012-cat-16m-vhp-motor-grader-a03329/

Description:

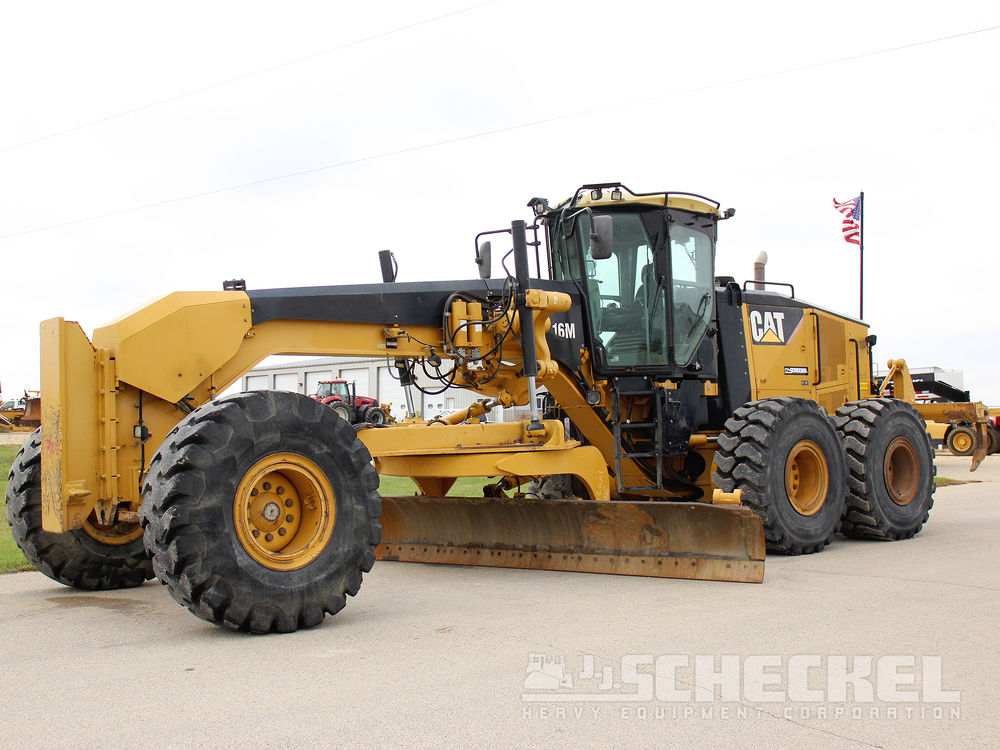

2012 Cat 16M VHP, 16,920 Total hours, 6,235 Idle hours, 10,685 Working hours on this machine. 16’ Moldboard, Ripper, GPS grade control ready. Came in from high reputation customer just off 14-month job. Read the details!
• 16,920 Total hours• 6,235 Idle hours, ECM verified• Only 10,685 actual working hours on this machine.• Original paint.• 16’ Moldboard.• Grade Control Arrangement equipped, Cat Part # 399-4628.• Rear Ripper Arrangement, c/w shanks just as pictured.• Front Push Block.• Light Package.• 330 HP, Cat C13 engine.• 65,000 Pound operating weightDeep Tread Radial Tires, 23.5+R25. Measurments on our website.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Blades
Maximum Shoulder Reach Outside of Tires - Left	82.0 in ( 208 cm )
Maximum Shoulder Reach Outside of Tires - Right	90.0 in ( 229 cm )
Moldboard Sideshift - Left	32.0 in ( 81 cm )
Moldboard Sideshift - Right	37.0 in ( 94 cm )
Circle
Blade Tip Angle - Front	40 deg
Blade Tip Angle - Rear	5 deg
Diameter	61.1 in ( 155 cm )
Max Lift Above Ground	17.8 in ( 45 cm )
Max Reach Outside Tires - Left	82.3 in ( 209 cm )
Max Reach Outside Tires - Right	89.7 in ( 228 cm )
Shift Left	27.4 in ( 70 cm )
Shift Right	28.7 in ( 73 cm )
Dimensions
Blade Base	8.6 ft ( 3 m )
Front Ground Clearance	2.0 ft ( 1 m )
Height to Top of Isomount Cab	10.8 ft ( 3 m )
Overall Length	28.6 ft ( 9 m )
Rear Ground Clearance	1.2 ft ( 0 m )
Tandem Axle Wheelbase	5.0 ft ( 2 m )
Wheelbase	20.1 ft ( 6 m )
Width Over Tires	8.2 ft ( 3 m )
Engine
Base Power (1st Gear) - Net	213.0 hp ( 159 kw )
Displacement	537.0 cu in ( 8,800 cu cm )
Engine Model	C9 ACERT VHP
Max Power	213.0 hp ( 159 kw )
Net Power Gears 7-8	213.0 hp ( 159 kw )
Net Torque Gears 7-8	912.4 lbs ft ( 1,237 nm )
Number of Cylinders	6.0
Power Measured @	2,000.0 rpm
Torque Measured @	2,000.0 rpm
Front Axle
Ground Clearance	2.0 ft ( 1 m )
Oscillation - Total	32 deg
Wheel Lean	18 deg
Hydraulic System
Pump Flow	55.7 gpm ( 211 lpm )
Pump Type	variable piston
Relief Valve Pressure	3,500.0 psi
Moldboard
Blade Pull at Max Weight	32,904.0 lbs ( 14,925 kg )
Max Depth of Cut	29.5 in ( 75 cm )
Moldboard Height	27.0 in ( 69 cm )
Moldboard Length	14.0 ft ( 4 m )
Moldboard Thickness	1.0 in ( 3 cm )
Moldboard Width	14.0 ft ( 4 m )
Side Shift Left	32.3 in ( 82 cm )
Side Shift Right	37.4 in ( 95 cm )
Operating Specifications
Circle Gearbox Fluid Capacity	1.8 gal ( 7 l )
Cooling System Fluid Capacity	10.6 gal ( 40 l )
Fuel Capacity	105.0 gal ( 397 l )
Hydraulic System Fluid Capacity	16.9 gal ( 64 l )
Max Operation Weight - Front Axle	18,478.0 lbs ( 8,381 kg )
Max Operation Weight - Rear Axle	34,317.0 lbs ( 15,566 kg )
Max Operation Weight - Total	52,795.0 lbs ( 23,947 kg )
Operating Weight	35,060.0 lbs ( 15,903 kg )
Rear Diff/Final Drive Fluid Capacity	17.2 gal ( 65 l )
Std Operation Weight - Front Axle	9,677.0 lbs ( 4,389 kg )
Std Operation Weight - Rear Axle	25,383.0 lbs ( 11,514 kg )
Std Operation Weight - Total	35,060.0 lbs ( 15,903 kg )
Tandem Case Fluid Capacity (each)	21.1 gal ( 80 l )
Steering System
Articulation Angle	20 deg
Turning Radius	25.0 ft ( 8 m )
Transmission
Max Speed - Forward	29.5 mph ( 47 kph )
Max Speed - Reverse	23.3 mph ( 38 kph )
Number of Gears - Forward	8.0
Number of Gears - Reverse	6.0
Transmission Type	direct drive power shift countershaft
