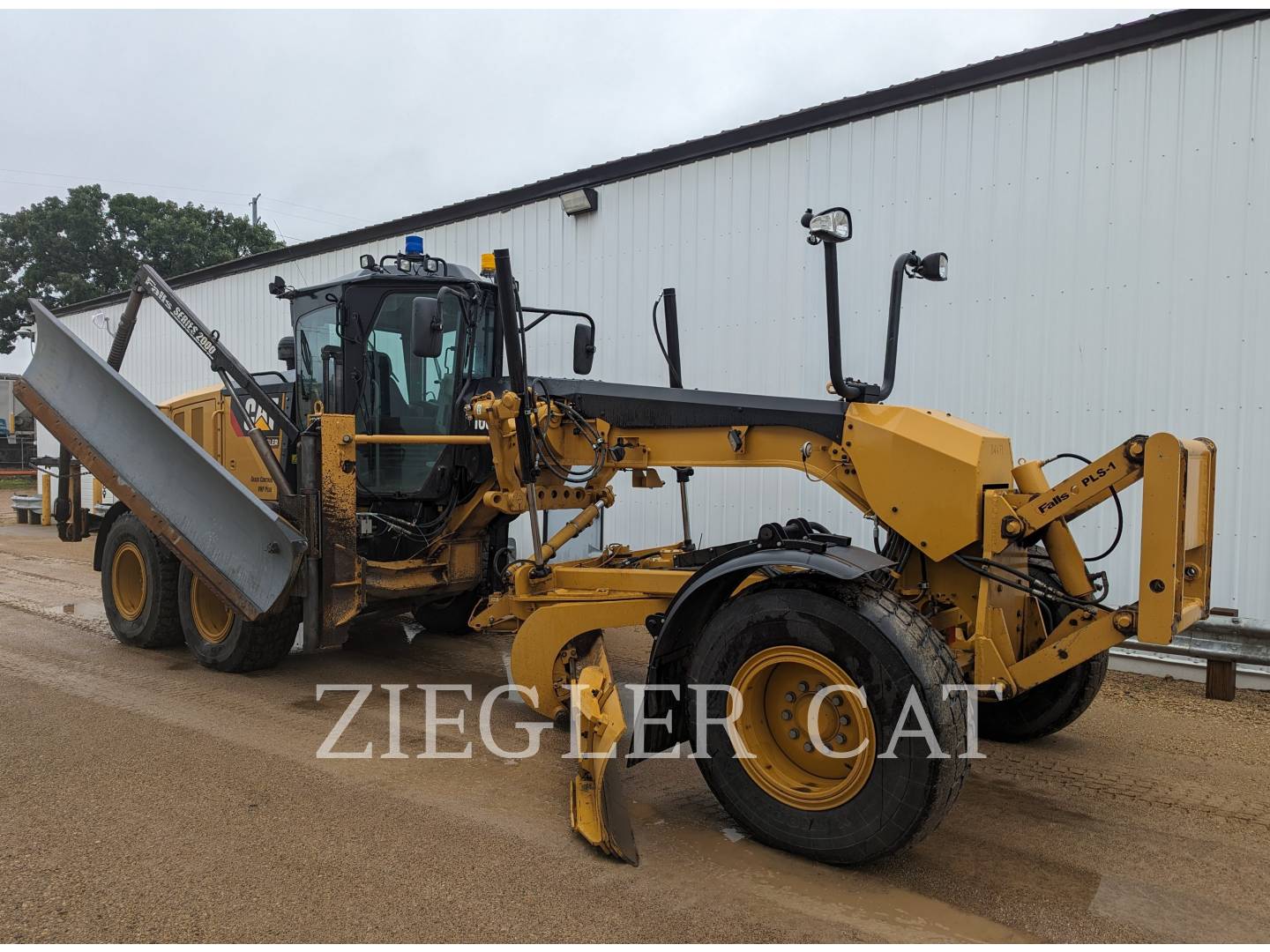

| Blades |
| Blade Tip Range - Backward | 5 deg |
| Blade Tip Range - Forward | 40 deg |
| Circle Centershift - Left | 27.4 in ( 70 cm ) |
| Circle Centershift - Right | 28.7 in ( 73 cm ) |
| Maximum Blade Position Angle | 90 deg |
| Maximum Depth of Cut | 29.5 in ( 75 cm ) |
| Maximum Lift Above Ground | 17.8 in ( 45 cm ) |
| Maximum Shoulder Reach Outside of Tires - Left | 82.3 in ( 209 cm ) |
| Maximum Shoulder Reach Outside of Tires - Right | 89.7 in ( 228 cm ) |
| Moldboard Sideshift - Left | 20.1 in ( 51 cm ) |
| Moldboard Sideshift - Right | 26.0 in ( 66 cm ) |
| Circle |
| Blade Tip Angle - Front | 40 deg |
| Blade Tip Angle - Rear | 5 deg |
| Diameter | 60.3 in ( 153 cm ) |
| Max Lift Above Ground | 17.8 in ( 45 cm ) |
| Max Reach Outside Tires - Left | 82.3 in ( 209 cm ) |
| Max Reach Outside Tires - Right | 89.7 in ( 228 cm ) |
| Rotation | 360 deg |
| Shift Left | 27.4 in ( 70 cm ) |
| Shift Right | 28.7 in ( 73 cm ) |
| Dimensions |
| Blade Base | 8.4 ft ( 3 m ) |
| Front Ground Clearance | 2.0 ft ( 1 m ) |
| Height to Top of Isomount Cab | 10.8 ft ( 3 m ) |
| Overall Length | 29.2 ft ( 9 m ) |
| Rear Ground Clearance | 1.2 ft ( 0 m ) |
| Tandem Axle Wheelbase | 5.0 ft ( 2 m ) |
| Wheelbase | 20.1 ft ( 6 m ) |
| Width Over Tires | 8.5 ft ( 3 m ) |
| Engine |
| Base Power (1st Gear) - Net | 213.0 hp ( 159 kw ) |
| Base Power (1st Gear) - Net - Metric | 216.0 hp ( 161 kw ) |
| Base Power (All Gears) - Net | 213.0 hp ( 159 kw ) |
| Bore | 4.5 in ( 11 cm ) |
| Derating Altitude | 10,000.0 ft ( 3,048 m ) |
| Emissions | U.S. Tier 4 Interim/EU Stage IIIB |
| Engine Model | Cat C9.3 ACERT |
| High - Ambient Capability | 122 deg |
| High Ambient - Fan Speed - Maximum | 1,550.0 rpm |
| High Ambient - Fan Speed - Minimum | 500.0 rpm |
| High Ambient - Fan Speed - Standard | 1,400.0 rpm |
| Maximum Torque | 1,000.0 lbs ft ( 1,356 nm ) |
| Net Torque Gears 7-8 | 1,000.0 lbs ft ( 1,356 nm ) |
| Number of Cylinders | 6.0 |
| Power Measured @ | 2,100.0 rpm |
| Speed at Rated Power | 2,100.0 rpm |
| Standard Capability | 109 deg |
| Stroke | 5.9 in ( 15 cm ) |
| Torque Measured @ | 2,100.0 rpm |
| V Plus - Gear 1F, Net | 213.0 hp ( 159 kw ) |
| V Plus - Gear 2F, Net | 223.0 hp ( 166 kw ) |
| V Plus - Gear 3F, Net | 233.0 hp ( 174 kw ) |
| V Plus - Gear 4F, Net | 243.0 hp ( 181 kw ) |
| V Plus - Gear 5F, Net | 248.0 hp ( 185 kw ) |
| V Plus - Gear 6F, Net | 253.0 hp ( 189 kw ) |
| V Plus - Gear 7F, Net | 258.0 hp ( 192 kw ) |
| V Plus - Gear 8F, Net | 263.0 hp ( 196 kw ) |
| V Plus Range - Net | 159-196 kW (213-263) |
| V Plus Range - Net - Metric | 159-196 kW (216-267) |
| Frame |
| Circle - Blade Beam Thickness | 1.6 in ( 4 cm ) |
| Circle - Diameter | 60.2 in ( 153 cm ) |
| Drawbar - Height | 6.0 in ( 15 cm ) |
| Drawbar - Thickness | 0.5 in ( 1 cm ) |
| Drawbar - Width | 3.0 in ( 8 cm ) |
| Front Axle - Height to Center | 23.6 in ( 60 cm ) |
| Front Axle - Total Oscillation per Side | 32 deg |
| Front Axle - Wheel Lean - Left/Right | 18 deg |
| Front Frame Structure - Height | 1.1 ft ( 0 m ) |
| Front Frame Structure - Width | 0.9 ft ( 0 m ) |
| Front-Top/Bottom Plate - Thickness | 0.9 in ( 2 cm ) |
| Front-Top/Bottom Plate - Width | 12.0 in ( 30 cm ) |
| Front Axle |
| Ground Clearance | 2.0 ft ( 1 m ) |
| Oscillation - Total | 32 deg |
| Wheel Lean | 18 deg |

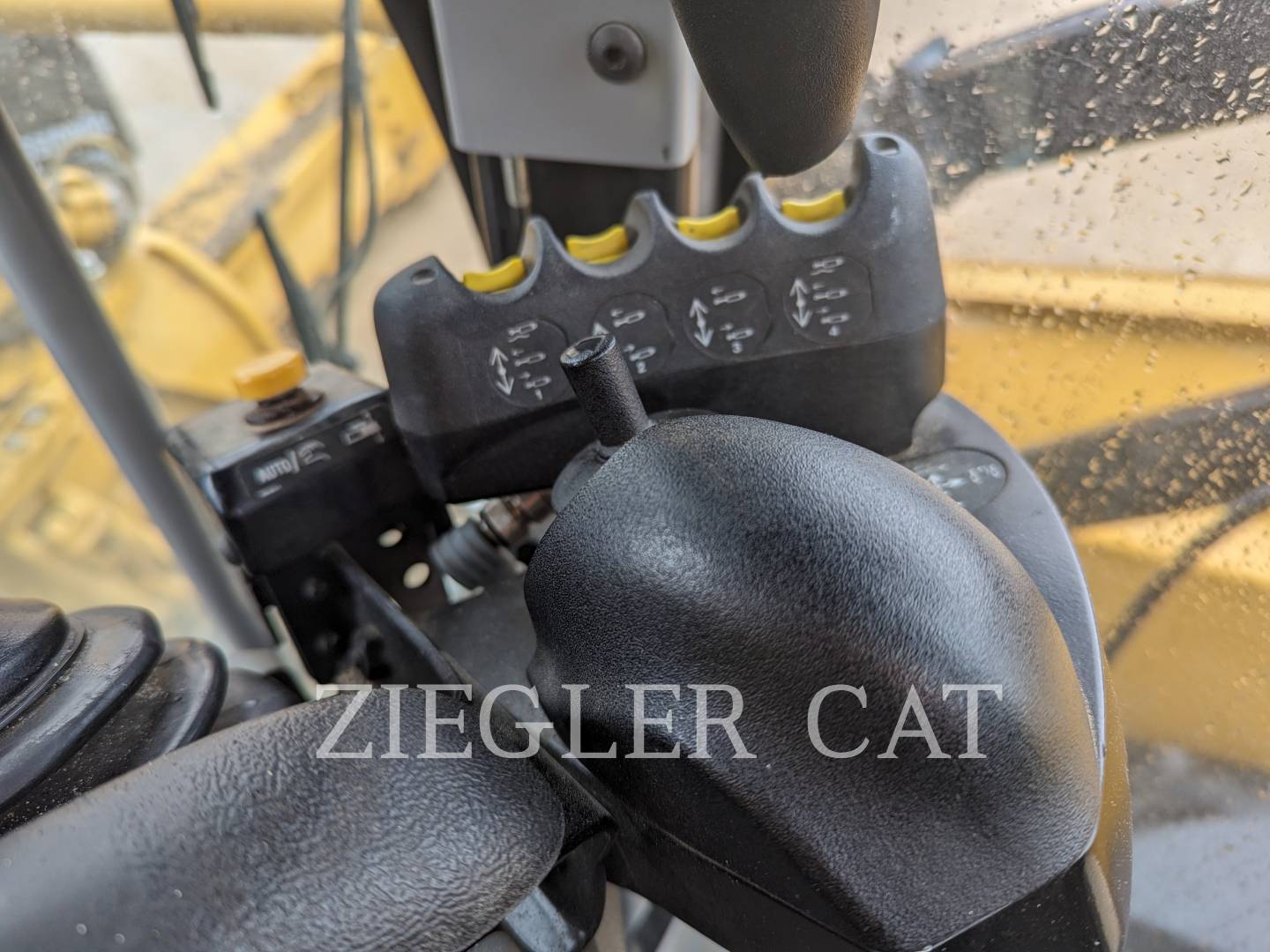

| Hydraulic System |
| Circuit Type | Parallel |
| Maximum System Pressure | 3,503.0 psi |
| Pump Flow | 55.5 gpm ( 210 lpm ) |
| Pump Output | 55.5 gpm ( 210 lpm ) |
| Pump Type | Variable Piston |
| Relief Valve Pressure | 3,503.0 psi |
| Reservoir Tank Capacity | 15.9 gal ( 60 l ) |
| Standby Pressure | 609.0 psi |
| Moldboard |
| Arc Radius | 16.3 in ( 41 cm ) |
| Blade Down Pressure | 22,884.0 lbs ( 10,380 kg ) |
| Blade Down Pressure - Base GVW | 17,171.0 lbs ( 7,789 kg ) |
| Blade Down Pressure - Maximum GVW | 29,195.0 lbs ( 13,243 kg ) |
| Blade Pull - Base GVW | 25,908.0 lbs ( 11,752 kg ) |
| Blade Pull - Maximum GVW | 34,072.0 lbs ( 15,455 kg ) |
| Blade Pull at Max Weight | 20,044.0 lbs ( 9,092 kg ) |
| Blade Width | 14.0 ft ( 4 m ) |
| Cutting Edge Thickness | 0.6 in ( 2 cm ) |
| Cutting Edge Width | 6.0 in ( 15 cm ) |
| End Bit - Thickness | 0.6 in ( 2 cm ) |
| End Bit - Width | 6.0 in ( 15 cm ) |
| Max Depth of Cut | 29.6 in ( 75 cm ) |
| Moldboard - Height | 24.0 in ( 61 cm ) |
| Moldboard - Thickness | 0.9 in ( 2 cm ) |
| Moldboard Height | 24.0 in ( 61 cm ) |
| Moldboard Thickness | 0.9 in ( 2 cm ) |
| Moldboard Width | 14.0 ft ( 4 m ) |
| Side Shift Left | 20.1 in ( 51 cm ) |
| Side Shift Right | 26.0 in ( 66 cm ) |
| Throat Clearance | 6.5 in ( 17 cm ) |
| Operating Specifications |
| Alternator Supplied Amperage | 150 amps |
| Articulation Angle - Left/Right | 20 deg |
| Circle Gearbox Fluid Capacity | 1.8 gal ( 7 l ) |
| Cooling System Fluid Capacity | 14.8 gal ( 56 l ) |
| Forward - 1st | 2.6 mph ( 4 kph ) |
| Forward - 2nd | 3.5 mph ( 6 kph ) |
| Forward - 3rd | 5.1 mph ( 8 kph ) |
| Forward - 4th | 7.0 mph ( 11 kph ) |
| Forward - 5th | 10.8 mph ( 17 kph ) |
| Forward - 6th | 14.7 mph ( 24 kph ) |
| Forward - 7th | 20.3 mph ( 33 kph ) |
| Forward - 8th | 29.5 mph ( 47 kph ) |
| Fuel Capacity | 110.0 gal ( 416 l ) |
| Hydraulic System Fluid Capacity | 26.4 gal ( 100 l ) |
| Max Operation Weight - Front Axle | 13,343.0 lbs ( 6,052 kg ) |
| Max Operation Weight - Rear Axle | 36,444.0 lbs ( 16,531 kg ) |
| Max Operation Weight - Total | 52,795.0 lbs ( 23,947 kg ) |
| Oil System Fluid Capacity | 7.9 gal ( 30 l ) |
| Operating Voltage | 24.0 volts |
| Reverse - 1st | 2 |
| Reverse - 2nd | 3.8 mph ( 6 kph ) |
| Reverse - 3rd | 5.5 mph ( 9 kph ) |
| Reverse - 4th | 8.5 mph ( 14 kph ) |
| Reverse - 5th | 16.0 mph ( 26 kph ) |
| Reverse - 6th | 23.3 mph ( 38 kph ) |
| Steering Range - Left/Right | 47.5 deg |
| Tandem Case Fluid Capacity (each) | 16.9 gal ( 64 l ) |
| Top Speed - Forward | 29.5 mph ( 47 kph ) |
| Top Speed - Reverse | 23.3 mph ( 38 kph ) |
| Transmission Fluid Capacity | 17.2 gal ( 65 l ) |
| Turning Radius - Outside Front Tires | 25.0 ft ( 8 m ) |
| Power Train |
| Brakes - Parking | Multiple Oil Disc |
| Brakes - Secondary | Dual Circuit Control |
| Brakes - Service | Multiple Oil Disc |
| Brakes - Service - Surface Area | 3,565.0 cu in ( 58,420 cu cm ) |
| Forward/Reverse Gears | 8 Fwd/6 Rev |
| Transmission | Direct Drive Powershift |
| Ripper |
| Machine Length Increase, Beam Raised | 40.6 in ( 103 cm ) |
| Penetration Force | 20,443.0 lbs ( 9,273 kg ) |
| Pry-Out Force | 258,201.0 lbs ( 117,118 kg ) |
| Ripper Shank Holder Spacing | 21.0 in ( 53 cm ) |
| Ripper Shank Holders | 5.0 |
| Ripping Depth - Maximum | 16.8 in ( 43 cm ) |
| Scarifier |
| Front, V-Type - Scarifier Shank Holder Spacing | 18.4 in ( 47 cm ) |
| Front, V-Type - Scarifying Depth, Maximum | 40.6 in ( 103 cm ) |
| Front, V-Type - Working Width | 47.4 in ( 120 cm ) |
| Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing | 4.6 in ( 12 cm ) |
| Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum | 18.4 in ( 47 cm ) |
| Front, V-Type, 5 or 11 Tooth - Working Width | 40.6 in ( 103 cm ) |
| Mid, Straight - Scarifier Shank Holder Spacing | 4.4 in ( 11 cm ) |
| Mid, Straight - Scarifier Shank Holders | 17.0 |
| Mid, Straight - Scarifying Depth, Maximum | 12.5 in ( 32 cm ) |
| Mid, Straight - Working Width | 70.9 in ( 180 cm ) |
| Mid, V-Type - Scarifier Shank Holder Spacing | 4.6 in ( 12 cm ) |
| Mid, V-Type - Scarifier Shank Holders | 11.0 |
| Mid, V-Type - Scarifying Depth, Maximum | 11.5 in ( 29 cm ) |
| Mid, V-Type - Working Width | 46.6 in ( 118 cm ) |
| Rear - Scarifier Shank Holder Spacing | 10.5 in ( 27 cm ) |
| Rear - Scarifier Shank Holders | 9.0 |
| Rear - Scarifying Depth, Maximum | 16.8 in ( 43 cm ) |
| Rear - Working Width | 84.0 in ( 213 cm ) |
| Service Refill |
| Circle Drive Housing | 1.8 gal ( 7 l ) |
| Cooling System | 14.8 gal ( 56 l ) |
| Engine Oil | 7.9 gal ( 30 l ) |
| Front Wheel Spindle Bearing Housing | 0.2 gal ( 1 l ) |
| Fuel Capacity | 110.0 gal ( 416 l ) |
| Hydraulic System - Tank | 16.9 gal ( 64 l ) |
| Hydraulic System - Total | 26.4 gal ( 100 l ) |
| Tandem Housing - Each | 16.9 gal ( 64 l ) |
| Transmission - Differential - Final Drives | 17.2 gal ( 65 l ) |
| Standards |
| Brakes | ISO 3450 ISO 10265 |
| ROPS/FOPS | ISO 3471/ISO 3499 |
| Sound | ISO 6394; ISO 6395 |
| Steering | ISO 5010 |
| Steering System |
| Articulation Angle | 20 deg |
| Turning Radius | 25.5 ft ( 8 m ) |
| Tandems |
| Drive Chain Pitch | 2.0 in ( 5 cm ) |
| Height | 19.9 in ( 51 cm ) |
| Sidewall Thickness - Inner | 0.7 in ( 2 cm ) |
| Sidewall Thickness - Outer | 0.8 in ( 2 cm ) |
| Tandem Oscillation - Front Down | 25 deg |
| Tandem Oscillation - Front Up | 15 deg |
| Wheel Axle Spacing | 60.0 in ( 152 cm ) |
| Width | 8.3 in ( 21 cm ) |
| Transmission |
| Max Speed - Forward | 29.0 mph ( 47 kph ) |
| Max Speed - Reverse | 22.9 mph ( 37 kph ) |
| Number of Gears - Forward | 8.0 |
| Number of Gears - Reverse | 6.0 |
| Transmission Type | Direct Drive Powershift |
| Weights |
| Gross Vehicle Weight - Maximum - Front Axle | 17,009.0 lbs ( 7,715 kg ) |
| Gross Vehicle Weight - Maximum - Rear Axle | 37,860.0 lbs ( 17,173 kg ) |
| Gross Vehicle Weight - Maximum - Total | 54,869.0 lbs ( 24,888 kg ) |
