Equipment ↠ JLG ↠ Telehandlers ↠ THIS 2024 JLG G5-18A

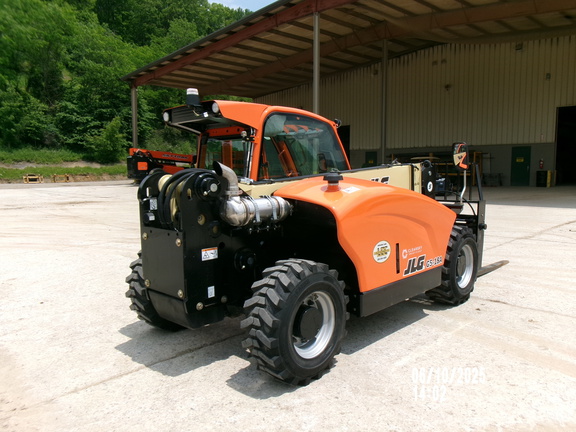

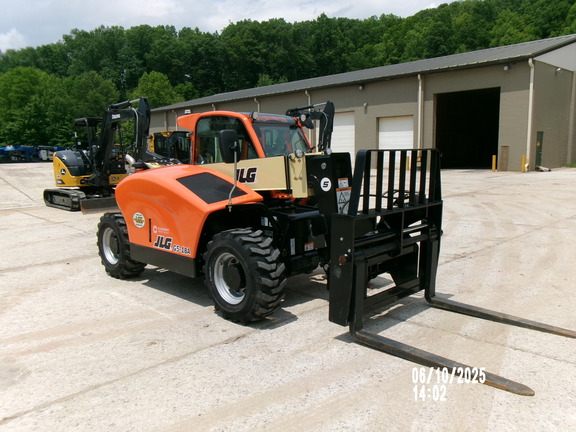

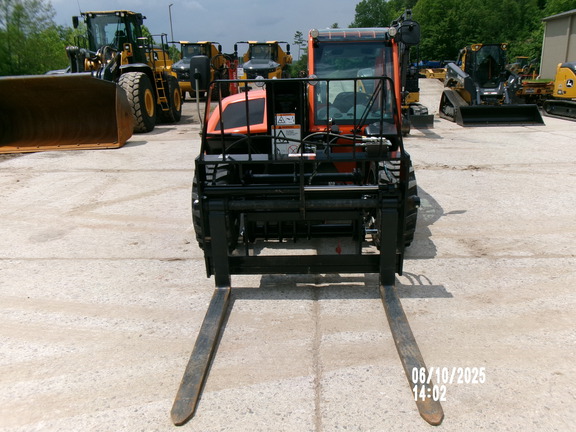

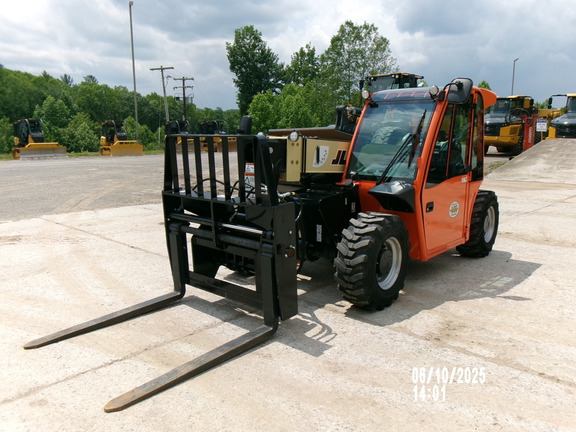

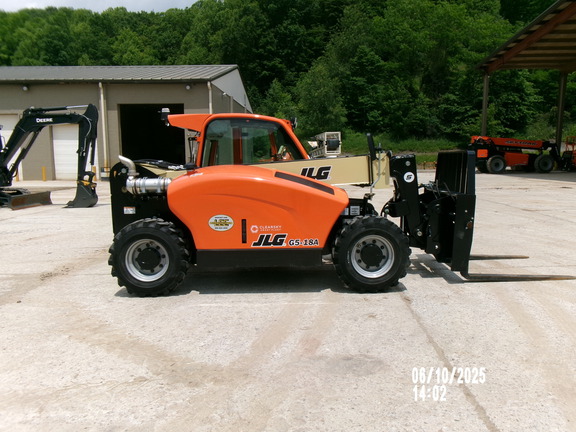

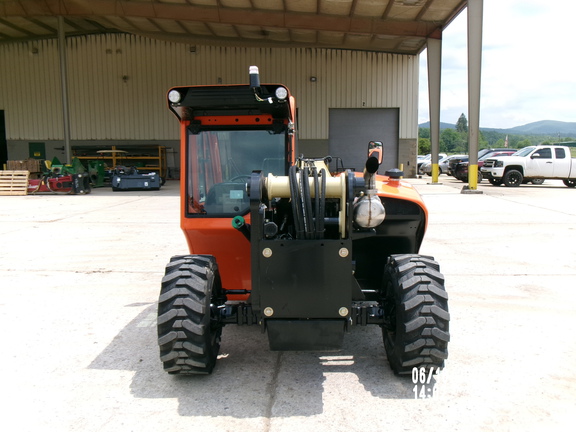

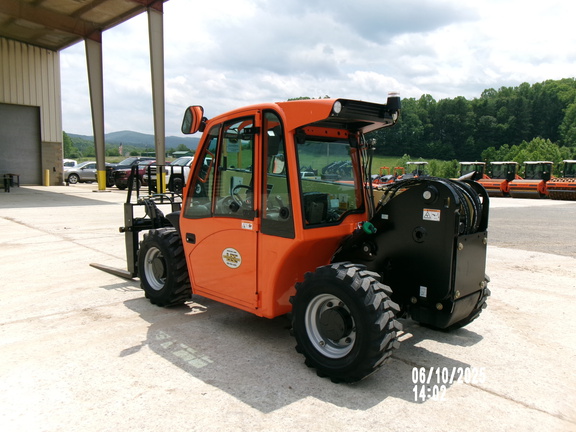

2024 JLG G5-18A For Sale in Fairmont, WV

❮

❯

For Sale: $100,000.00 USD

Apply for Financing

Leslie Equipment Company

Leslie Equipment Company Dealer Info

Leslie Equipment Company Website

Click here to email Leslie Equipment Company.

Click for Phone Number

Machine Info:

Serial Number:	0160130649
Stock Number:	43873
Machine Location:	FAIRMONT, WV

Description:

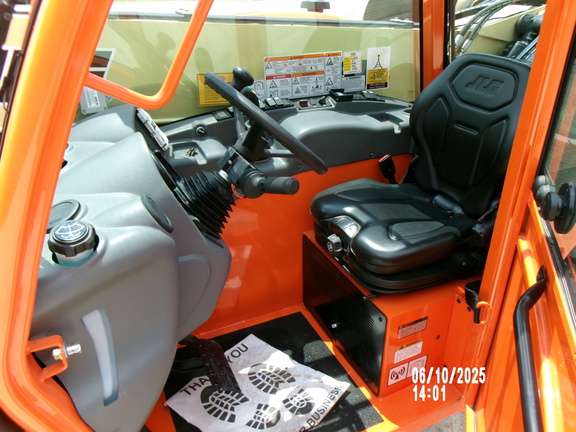

CAB, AC, 5K, DUAL FORK POSITION CARRIAGE

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Axles
Front	High Bias Limited Slip
Rear	Oscillating
Brakes
Brakes Type	Wet Multi-Disc
Capacities
Engine Oil	2.4 gal ( 9 l )
Fuel Tank	3.5 gal ( 13 l )
Dimensions
Cab width	2.9 ft ( 1 m )
Ground Clearance	10.8 in ( 27 cm )
Length to Fork Face	12.6 ft ( 4 m )
Overall Height	6.4 ft ( 2 m )
Turning Radius Outside Tires	10.6 ft ( 3 m )
Wheelbase	7.6 ft ( 2 m )
Width	6.0 ft ( 2 m )
Engine
Displacement	177.0 cu in ( 2,901 cu cm )
Engine Model	1104D
Gross Power	74.0 hp ( 55 kw )
Number of Cylinders	4.0
Power Measured @	2,300.0 rpm
Hydraulic System
Pump Flow Capacity	19.1 gpm ( 72 lpm )
Pump Type	gear
Relief Valve Pressure	3,495.5 psi
Lift System
Max Forward Reach	10.9 ft ( 3 m )
Max Lift Capacity	5,500.6 lbs ( 2,495 kg )
Max Lift Height	18.1 ft ( 6 m )
Max Load at Max Height	2,636.8 lbs ( 1,196 kg )
Max Load at Max Reach	1,849.7 lbs ( 839 kg )
Operating Specifications
Alternator Supplied Amperage	75 amps
Drawbar Pull	8,699.5 lbs ( 3,946 kg )
Fuel Capacity	24.1 gal ( 91 l )
Operating Voltage	12.0 volts
Operating Weight	10,800.5 lbs ( 4,899 kg )
Tire Size	12x16.5
Performance
Maximum Lift	6.8 seconds
Maximum Lower	4.6 seconds
Maximum Telescope In	3.8 seconds
Maximum Telescope Out	6.7 seconds
Maximum Travel	15.0 mph ( 24 kph )
Transmission
Max Speed - forward	17.1 mph ( 28 kph )
Transmission Type	hydrostatic
Weights
Operating weight	11,001.1 lbs ( 4,990 kg )
