2007 John Deere 772D For Sale in EDMONTON, AB

Name: 2007 John Deere 772D
Brand: John Deere
Price: 118000 CAD
Availability: InStock

❮

❯

For Sale: $84,523.00 USD
Converted From: 118,000.00 CAD

Apply for Financing

Brandt Tractor LTD

Brandt Tractor LTD Dealer Info

Brandt Tractor LTD Website

Click here to email Brandt Tractor LTD.

Contact: Equipment Sales

Click for Phone Number

Machine Info:

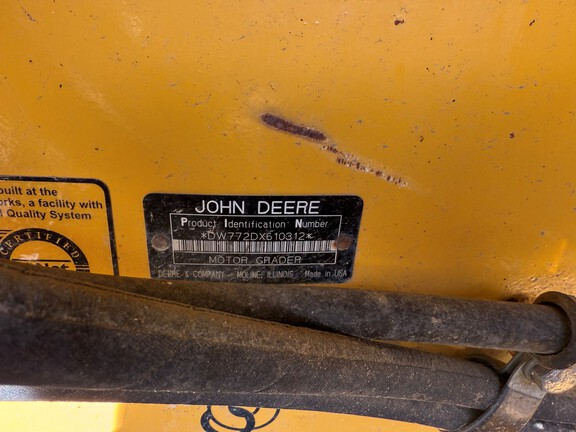

Serial Number:	DW772DX610312
Stock Number:	1U610312
Machine Location:	EDMONTON, AB

Description:

Low Cab; 14' Blade; 17.50 Tires; Push Block, Ripper/Scarifier

Machine Details:

General Specifications

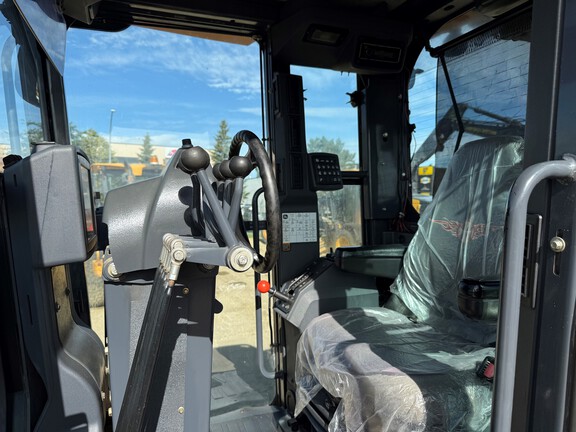

Operators Station	Low Cab
Blades	4.27 m (14 ft.) Blade
Tires	17.50 Tires
Attachments	Push Block
Operators Station	Low Cab
Blades	4.27 m (14 ft.) Blade
Tires	17.50 Tires
Attachments	Push Block

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	42 deg
Blade Tip Angle - Rear	5 deg
Diameter	59.9 in ( 152 cm )
Max Lift Above Ground	18.5 in ( 47 cm )
Max Reach Outside Tires - Left	82.5 in ( 210 cm )
Max Reach Outside Tires - Right	82.0 in ( 208 cm )
Rotation	360 deg
Shift Left	31.0 in ( 79 cm )
Shift Right	28.6 in ( 73 cm )
Dimensions
Blade Base	8.5 ft ( 3 m )
Front Ground Clearance	2.0 ft ( 1 m )
Height to Top of Isomount Cab	10.5 ft ( 3 m )
Overall Length	28.9 ft ( 9 m )
Tandem Axle Wheelbase	5.1 ft ( 2 m )
Wheelbase	20.1 ft ( 6 m )
Width Over Tires	8.3 ft ( 3 m )
Engine
Aspiration	Turbocharged with air-to-air aftercooler
Displacement	494.0 cu in ( 8,095 cu cm )
Engine Model	6081H
Max Power	230.0 hp ( 172 kw )
Net Power Gear 1-2	185.0 hp ( 138 kw )
Net Power Gear 4-6	215.0 hp ( 160 kw )
Net Power Gear 5-6	230.0 hp ( 172 kw )
Net Power Gears 7-8	215.0 hp ( 160 kw )
Net Torque Gears 1-2	738.0 lbs ft ( 1,001 nm )
Net Torque Gears 3-4	778.0 lbs ft ( 1,055 nm )
Net Torque Gears 5-6	929.0 lbs ft ( 1,260 nm )
Net Torque Gears 7-8	929.0 lbs ft ( 1,260 nm )
Number of Cylinders	6.0
Power Measured @	2,000.0 rpm
Torque Measured @	1,000.0 rpm
Front Axle
Ground Clearance	2.0 ft ( 1 m )
Oscillation - Total	32 deg
Wheel Lean	20 deg
Hydraulic System
Pump Flow	54.7 gpm ( 207 lpm )
Pump Type	Variable displacement piston
Relief Valve Pressure	2,750.0 psi
Moldboard
Blade Pull at Max Weight	43,200.0 lbs ( 19,595 kg )
Moldboard Height	24.1 in ( 61 cm )
Moldboard Thickness	0.9 in ( 2 cm )
Moldboard Width	12.1 ft ( 4 m )
Side Shift Left	26.8 in ( 68 cm )
Side Shift Right	26.8 in ( 68 cm )
Operating Specifications
Alternator Supplied Amperage	100 amps
Circle Gearbox Fluid Capacity	1.5 gal ( 6 l )
Cooling System Fluid Capacity	13.0 gal ( 49 l )
Fuel Capacity	106.0 gal ( 401 l )
Hydraulic System Fluid Capacity	14.0 gal ( 53 l )
Max Operation Weight - Front Axle	15,840.3 lbs ( 7,185 kg )
Max Operation Weight - Rear Axle	32,158.9 lbs ( 14,587 kg )
Max Operation Weight - Total	47,999.1 lbs ( 21,772 kg )
Operating Voltage	24.0 volts
Rear Diff/Final Drive Fluid Capacity	9.5 gal ( 36 l )
Std Operation Weight - Front Axle	9,620.0 lbs ( 4,364 kg )
Std Operation Weight - Rear Axle	24,660.0 lbs ( 11,186 kg )
Std Operation Weight - Total	34,280.0 lbs ( 15,549 kg )
Tandem Case Fluid Capacity (each)	20.0 gal ( 76 l )
Tire Size	14.00R24 Radial PR
Transmission Fluid Capacity	6.0 gal ( 23 l )
Steering System
Articulation Angle	22 deg
Turning Radius	23.5 ft ( 7 m )
Transmission
Max Speed - Forward	25.9 mph ( 42 kph )
Max Speed - Reverse	25.9 mph ( 42 kph )
Number of Gears - Forward	8.0
Number of Gears - Reverse	8.0
Transmission Type	Powershift with direct drive
